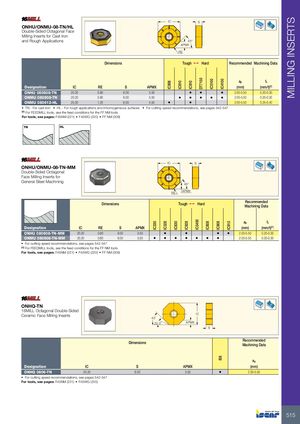

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 199

IC330 IC328 IC908 IC830 IC810 IC928 IC910 IC5400 DT7150 IC808 IC5100 IC4100IC908IS8 IC910 MILLING INSERTS IC S ONHU/ONMU-08-TN/HL Double-Sided Octagonal Face Milling Inserts for Cast Iron and Rough Applications 45° APMX RE Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation IC RE S APMX (mm) (mm/t)(1) ONHU 080608-TN 20.20 0.80 6.00 5.50 • • • 2.00-5.50 0.20-0.30 ONMU 080608-TN 20.20 0.80 6.00 5.50 • • • • • 2.00-5.50 0.20-0.30 ONMU 080612-HL 20.20 1.20 6.00 5.50 • • 2.00-5.50 0.25-0.40 • TN - For cast iron • HL - For rough applications and inhomogeneous surfaces • For cutting speed recommendations, see pages 542-547 (1) For FEEDMILL tools, see the feed conditions for the FF NM tools For tools, see pages: F45NM (221) • F45WG (220) • FF NM (309) TN HL IC S ONHU/ONMU-08-TN-MM Double-Sided Octagonal Face Milling Inserts for General Steel Machining 45° RE APMX Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation IC RE S APMX (mm) (mm/t)(1) ONHU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • 2.00-5.50 0.20-0.30 ONMU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • • • • 2.00-5.50 0.20-0.30 • For cutting speed recommendations, see pages 542-547 (1) For FEEDMILL tools, see the feed conditions for the FF NM tools For tools, see pages: F45NM (221) • F45WG (220) • FF NM (309) ONHQ-TN 16MILL Octagonal Double-Sided Ceramic Face Milling Inserts IC 45˚ 22.5˚ APMX S Dimensions RecommendedMachining Data ap Designation IC S APMX (mm) ONHQ 0806-TN 20.20 6.00 5.50 • 2.00-5.50 • For cutting speed recommendations, see pages 542-547 For tools, see pages: F45NM (221) • F45WG (220) 515
