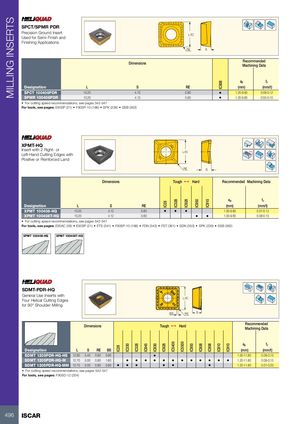

MILLING INSERTS
SPCT/SPMR PDR
Precision Ground Insert L/IC
Used for Semi-Finish and
Finishing Applications
RE S

Recommended
Dimensions
Machining Data

ap fz


IC808
Designation L S RE (mm) (mm/t)
SPCT 100408PDR 10.20 4.13 0.80 • 1.20-9.60 0.08-0.12
SPMR 100408PDR 10.20 4.13 0.80 • 1.20-9.60 0.05-0.10
• For cutting speed recommendations, see pages 542-547
For tools, see pages: E90SP (21) • F90SP-10 (198) • SPK (239) • SSB (362)


XPMT-HQ


HQ
Insert with 2 Right- or L/IC Rd°
Left-Hand Cutting Edges with
Positive or Reinforced Land HQ
RE S

Dimensions Tough 1 Hard Recommended Machining Data

ap fz
IC328
IC928
IC950
IC910
IC28


Designation L S RE (mm) (mm/t)
XPMT 100408-HQ 10.20 4.12 0.60 • • • 1.00-9.60 0.07-0.12
XPMT 100408T-HQ 10.20 4.12 0.60 • • 1.00-9.60 0.08-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: E90AC (36) • E90SP (21) • ETS (341) • F90SP-10 (198) • FDN (342) • FST (361) • SDN (353) • SPK (239) • SSB (362)

XPMT 100408-HQ XPMT 100408T-HQ


SDMT-PDR-HQ
General Use Inserts with
L/IC
Four Helical Cutting Edges
for 90° Shoulder Milling
BS RE S

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz
IC5400
IC5500
IC330
IC328
IC845
IC830
IC928


IC950
IC808
IC908
IC810
IC910
IC28


Designation L S RE BS (mm) (mm/t)
SDMT 1205PDR-HQ-HS 12.60 5.40 0.60 0.80 • 1.00-11.80 0.08-0.15
SDMT 1205PDR-HQ-M 12.70 5.00 0.80 1.60 • • • • • • • • • • • • 1.20-11.80 0.08-0.15
SDMT 1205PDR-HQ-MM 12.75 5.00 0.80 0.80 • • • • • • 1.20-11.80 0.07-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F90SD-12 (204)


496 ISCAR
