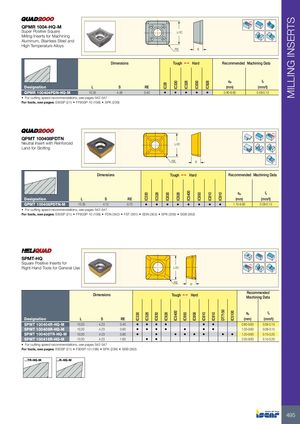

MILLING INSERTS Rd° QPMR 1004-HQ-M Super Positive Square L/IC Milling Inserts for Machining Aluminum, Stainless Steel and High Temperature Alloys RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC330 IC328 IC830 IC928 IC28 Designation L S RE (mm) (mm/t) QPMR 100404PDN-HQ-M 10.35 4.48 0.40 • • • • • 0.80-9.60 0.08-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: E90SP (21) • FF90SP-10 (198) • SPK (239) Rd° QPMT 100408PDTN Neutral Insert with Reinforced L/IC Land for Slotting RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC5400 IC330 IC328 IC830 IC928 IC950 IC810 IC910 Designation L S RE (mm) (mm/t) QPMT 100408PDTN-M 10.35 4.12 0.70 • • • • • • • • 1.10-9.60 0.08-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: E90SP (21) • FF90SP-10 (198) • FDN (342) • FST (361) • SDN (353) • SPK (239) • SSB (362) SPMT-HQ Square Positive Inserts for Rd° Right-Hand Tools for General Use L/IC RE S Recommended Dimensions Tough 1 Hard Machining Data DT7150 ap fz IC5400 IC5100 IC330 IC328 IC830 IC928 IC950 IC808 IC810 IC910 Designation L S RE (mm) (mm/t) SPMT 100404R-HQ-M 10.20 4.23 0.40 • • • • • • 0.80-9.60 0.08-0.15 SPMT 100408R-HQ-M 10.20 4.23 0.60 • • • • • • • 1.00-9.60 0.08-0.15 SPMT 100408TR-HQ-M 10.20 4.23 0.80 • • • • • • • • 1.20-9.60 0.10-0.20 SPMT 100416R-HQ-M 10.20 4.23 1.60 • • 2.00-9.60 0.10-0.20 • For cutting speed recommendations, see pages 542-547 For tools, see pages: E90SP (21) • F90SP-10 (198) • SPK (239) • SSB (362) ...TR-HQ-M ...R-HQ-M 495
