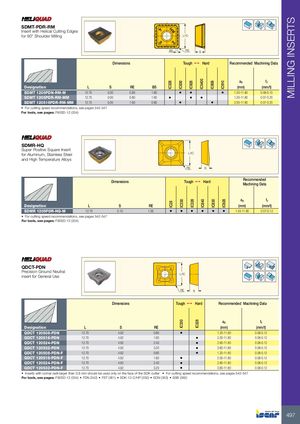

MILLING INSERTS
SDMT-PDR-RM
Insert with Helical Cutting Edges
for 90° Shoulder Milling L/IC

BS RE S

Dimensions Tough 1 Hard Recommended Machining Data

ap fz


IC5400
IC328
IC830
IC928


IC808
IC910
Designation L S RE BS (mm) (mm/t)
SDMT 1205PDN-RM-M 12.70 5.00 0.80 1.60 • • • 1.20-11.80 0.08-0.15
SDMT 1205PDR-RM-MM 12.75 5.00 0.80 1.60 • • • 1.20-11.80 0.07-0.20
SDMT 120516PDR-RM-MM 12.75 5.00 1.60 0.80 • • 2.00-11.80 0.07-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F90SD-12 (204)


SDMR-HQ
Super Positive Square Insert
L/IC
for Aluminum, Stainless Steel
and High Temperature Alloys
RE S

Recommended
Dimensions Tough 1 Hard
Machining Data

ap fz
IC330
IC328
IC840
IC830
IC928
IC28


Designation L S RE (mm) (mm/t)
SDMR 1205PDR-HQ-M 12.70 5.10 1.00 • • • • • • 1.40-11.80 0.07-0.12
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F90SD-12 (204)


QDCT-PDN 1 4
Precision Ground Neutral
L/IC
insert for General Use
2 3
RE S

Dimensions Tough 1 Hard Recommended Machining Data

ap fz
IC330

IC328


Designation L S RE (mm) (mm/t)
QDCT 120508-PDN 12.70 4.92 0.80 • 1.20-11.80 0.08-0.12
QDCT 120516-PDN 12.70 4.92 1.60 • 2.00-11.80 0.08-0.12
QDCT 120524-PDN 12.70 4.92 2.40 • 2.80-11.80 0.08-0.12
QDCT 120532-PDN 12.70 4.92 3.20 • 3.60-11.80 0.08-0.12
QDCT 120508-PDN-F 12.70 4.92 0.80 • 1.20-11.80 0.08-0.12
QDCT 120516-PDN-F 12.70 4.92 1.60 • 2.00-11.80 0.08-0.12
QDCT 120524-PDN-F 12.70 4.92 2.40 • 2.80-11.80 0.08-0.12
QDCT 120532-PDN-F 12.70 4.92 3.20 • 3.60-11.80 0.08-0.12
• Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter • For cutting speed recommendations, see pages 542-547
For tools, see pages: F90SD-12 (204) • FDN (342) • FST (361) • SDK-12-C/HP (250) • SDN (353) • SSB (362)


497
