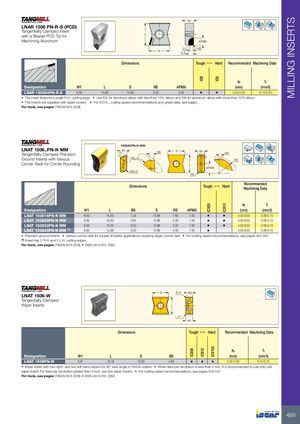

LNAR 1506 PN-R-S (PCD)
Tangentially Clamped Insert
with a Brazed PCD Tip for L Machining Aluminum APMX 2.0 RE S 4.5
Dimensions Tough 1 Hard Recommended Machining Data
a f
p z
| Designation | W1 | L | S | RE | APMX | (mm) | (mm/t) | ||
| LNAR 150604PN-R-S | 6.00 | 15.06 | 14.00 | 0.40 | 5.00 | • | • | 0.05-2.00 | 0.10-0.25 |
- The insert features a single R.H. cutting edge
- Use ID5 for aluminum alloys with less than 12% silicon and ID8 for aluminum alloys with more than 12% silicon
- The inserts are supplied with spare screws
- For D.O.C., cutting speed recommendations and grade data, see pages ..
For tools, see pages: F90LN-N15 (208)
150640PN-N MM
LNAT 1506..PN-N MM
W1 BS S W
Tangentially Clamped Precision 1 BS
Ground Inserts with Various RE=4 RE Corner Radii for Corner Rounding L APMX
RE4.0 RE
Recommended
Dimensions Tough 1 Hard
Machining Data
ap fz
| Designation | W1 | L | BS | S | RE | APMX | (mm) | (mm/t) | ||
| LNAT 150616PN-N MM | 6.00 | 15.00 | 1.39 | 13.88 | 1.60 | 7.00 | • | • | 4.00-8.00 | 0.08-0.15 |
| LNAT 150625PN-N MM | 6.00 | 15.00 | 0.60 | 13.88 | 2.50 | 7.00 | • | • | 4.00-8.00 | 0.08-0.15 |
| LNAT 150632PN-N MM | 6.00 | 15.00 | 0.53 | 13.88 | 3.20 | 7.00 | • | • | 4.00-8.00 | 0.08-0.15 |
| LNAT 150640PN-N MM (1) | 6.00 | 14.98 | 0.00 | 13.96 | 4.00 | 7.00 | • | 4.00-8.00 | 0.08-0.15 |
- Precision ground inserts
- Various corner radii for square shoulder applications requiring larger corner radii
- For cutting speed recommendations, see pages 542-547
(1) Insert has 2 R.H. and 2 L.H. cutting edges.
For tools, see pages: F90LN-N15 (208) SSB-LN15-R/L (362)
| LNAT 1506-W | S | R.H | BS | |
| Tangentially Clamped | ||||
| Wiper Inserts | L | |||
| L.H | ||||
| W 1 |
Dimensions Tough 1 Hard Recommended Machining Data
a p fz
| Designation | W1 | L | S | BS | (mm) | (mm/t) | |||
| LNAT 1506PN-W | 5.97 | 15.18 | 13.85 | 4.80 | • | • | • | 0.50-2.00 | 0.10-0.15 |
- Wiper insert with two right- and two left-hand wipers for 90° lead angle in F90LN cutters
- When feed per revolution is less than 4 mm, it is recommended to use only one
wiper insert. For feed per revolution greater than 4 mm, use two wiper inserts For cutting speed recommendations, see pages 542-547
For tools, see pages: F90LN-N15 (208) SSB-LN15-R/L (362)
