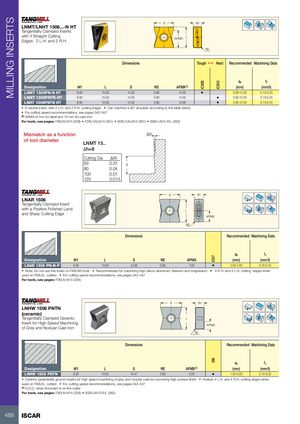

LNMT/LNHT 1506...-N HT with 4 Straight Cutting L Edges: 2 L.H. and 2 R.H. APMX RE
Dimensions Tough 1 Hard Recommended Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX(1) | (mm) | (mm/t) | ||
| LNMT 1506PN-N HT | 6.00 | 15.00 | 14.03 | 0.80 | 14.00 | • | 3.00-12.00 | 0.15-0.25 | |
| LNMT 1506PNTN-HT | 6.00 | 15.00 | 14.03 | 0.80 | 14.00 | • | 3.00-12.00 | 0.15-0.25 | |
| LNHT 1506PNTN HT | 6.00 | 15.00 | 14.03 | 0.80 | 14.00 | • | 3.00-12.00 | 0.15-0.25 |
- A neutral insert, with 2 L.H. and 2 R.H. cutting edges
- Can machine a 90° shoulder according to the table below
- For cutting speed recommendations, see pages 542-547
(1) APMX=9 mm for steel and 14 mm for cast iron
For tools, see pages: F90LN-N15 (208) FDN-CALN15 (351) SDN-CALN15 (361) SSB-LN15-R/L (362) Mismatch as a function ∆W
of tool diameter
LNMT 15..
Δh=8
Cutting Dia. ∆W
63 0.07 8
80 0.04 100 0.01 125 0.015
LNAR 1506 Tangentially Clamped Insert with a Positive Polished Land and Sharp Cutting Edge
Dimensions
S
W1
L APMX RE Recommended Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX | (mm) | (mm/t) | |
| LNAR 1506 PN-N-P | 6.00 | 15.00 | 13.56 | 0.80 | 7.00 | • | 2.00-7.00 | 0.10-0.15 |
- Note: Do not use this insert on F86LNX tools
- Recommended for machining high silicon aluminum, titanium and magnesium
- 4 R.H. and 4 L.H. cutting edges when
used on F90LN.. cutters For cutting speed recommendations, see pages 542-547
For tools, see pages: F90LN-N15 (208)
LNHW 1506 PNTN (ceramic) Tangentially Clamped Ceramic Insert for High Speed Machining of Grey and Nodular Cast Iron
Dimensions
S W1
L APMX RE Recommended Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX(1) | (mm) | (mm/t) | |
| LNHW 1506 PNTN | 6.00 | 15.00 | 14.47 | 0.80 | 5.00 | • | 1.00-5.00 | 0.15-0.25 |
- Ceramic peripherally ground inserts for high speed machining of grey and nodular cast iron providing high surface finish
- Feature 4 L.H. and 4 R.H. cutting edges when
used on F90LN.. cutters For cutting speed recommendations, see pages 542-547 (1) D.O.C. when the insert is on the cutter
For tools, see pages: F90LN-N15 (208) SSB-LN15-R/L (362)
