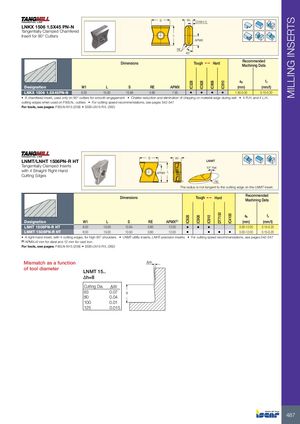

LNKX 1506 1.5X45 PN-N Tangentially Clamped Chamfered Insert for 90° Cutters
L
RE
Dimensions
CHW1.5
APMX
45° Recommended
Tough 1 Hard Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX | (mm) | (mm/t) | ||||
| LNKX 1506 1.5X45PN-N | 6.00 | 15.00 | 13.88 | 0.80 | 7.00 | • | • | • | • | 1.50-5.00 | 0.15-0.20 |
- A chamfered insert, used only on 90° cutters for smooth engagement
- Chatter reduction and elimination of chipping on material edge during exit
- 4 R.H. and 4 L.H.
cutting edges when used on F90LN.. cutters For cutting speed recommendations, see pages 542-547
For tools, see pages: F90LN-N15 (208) SSB-LN15-R/L (362)
S W 1 LNMT/LNHT 1506PN-R HT LNMT Tangentially Clamped Inserts 10° Ref. with 4 Straight Right-Hand Cutting Edges APMX L RE The radius is not tangent to the cutting edge on the LNMT insert.
Dimensions Tough Hard Recommended
1 Machining Data
a f p z
| Designation | W1 | L | S | RE | APMX(1) | (mm) | (mm/t) | |||||
| LNHT 1506PN-R HT | 6.00 | 15.00 | 13.94 | 0.80 | 12.00 | • | • | • | 3.00-12.00 | 0.15-0.25 | ||
| LNMT 1506PN-R HT | 6.00 | 15.00 | 13.93 | 0.80 | 12.00 | • | • | • | • | 3.00-12.00 | 0.15-0.20 |
- A right-hand insert, with 4 cutting edges, for high 90° shoulders
- LNMT-utility inserts, LNHT-precision inserts
- For cutting speed recommendations, see pages 542-547
(1) APMX=9 mm for steel and 12 mm for cast iron
For tools, see pages: F90LN-N15 (208) SSB-LN15-R/L (362)
Mismatch as a function ∆W
of tool diameter
LNMT 15..
Δh=8
| Cutting Dia. | ∆W |
| 63 | 0.07 |
| 8 | |
| 80 | 0.04 |
| 100 | 0.01 |
| 125 | 0.015 |
