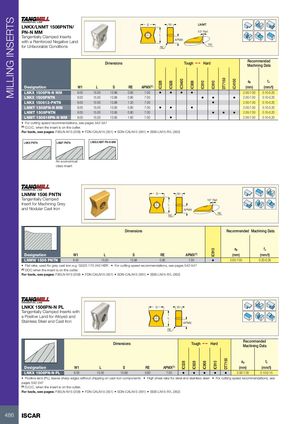

MILLING INSERTS
S W1 LNMT
LNKX/LNMT 1506PNTN/
PN-N MM L
10° Ref.
Tangentially Clamped Inserts
APMX
with a Reinforced Negative Land
RE
for Unfavorable Conditions RE

Recommended
Dimensions Tough 1 Hard
Machining Data


DT7150
ap fz


IC5400


IC4100
IC328
IC928


IC908
IC810
IC910
Designation W1 L S RE APMX(1) (mm) (mm/t)
LNKX 1506PN-N MM 6.00 15.00 13.88 0.80 7.00 • • • • 2.00-7.00 0.10-0.20
LNKX 1506PNTN 6.00 15.00 13.88 0.80 7.00 • • • 2.00-7.00 0.10-0.20
LNKX 150612-PNTN 6.00 15.00 13.88 1.20 7.00 • 2.00-7.00 0.10-0.20
LNMT 1506PN-N MM 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20
LNMT 1506PNTN 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20
LNMT 150616PN-N MM 6.00 15.00 13.95 1.60 7.00 • 2.00-7.00 0.10-0.20
• For cutting speed recommendations, see pages 542-547
(1) D.O.C. when the insert is on the cutter.
For tools, see pages: F90LN-N15 (208) • FDN-CALN15 (351) • SDN-CALN15 (361) • SSB-LN15-R/L (362)

LNKX PNTN LNMT PNTN LNKX/LNMT PN-N-MM


An economical
class insert


LNMW 1506 PNTN S W1
Tangentially Clamped 10° Ref.
Insert for Machining Grey L
and Nodular Cast Iron APMX
RE
RE


Dimensions Recommended Machining Data

ap fz
IC910


Designation W1 L S RE APMX(1) (mm) (mm/t)
LNMW 1506 PNTN 6.00 15.00 13.98 0.80 7.00 • 2.00-7.00 0.20-0.30
• Flat rake, used for grey cast iron e.g. GG25 170-240 HBR • For cutting speed recommendations, see pages 542-547
(1) DOC when the insert is on the cutter.
For tools, see pages: F90LN-N15 (208) • FDN-CALN15 (351) • SDN-CALN15 (361) • SSB-LN15-R/L (362)


LNKX 1506PN-N PL S W1
Tangentially Clamped Inserts with
a Positive Land for Alloyed and L
Stainless Steel and Cast Iron APMX
RE

Recommended
Dimensions Tough 1 Hard
Machining Data
DT7150


ap fz
IC328
IC928
IC908
IC910


Designation W1 L S RE APMX(1) (mm) (mm/t)
LNKX 1506PN-N PL 6.00 15.00 13.88 0.80 7.00 • • • • • 2.00-7.00 0.10-0.15
• Positive land (PL), leaves sharp edges without chipping on cast iron components • High shear rake for steel and stainless steel • For cutting speed recommendations, see
pages 542-547
(1) D.O.C. when the insert is on the cutter.
For tools, see pages: F90LN-N15 (208) • FDN-CALN15 (351) • SDN-CALN15 (361) • SSB-LN15-R/L (362)


486 ISCAR
