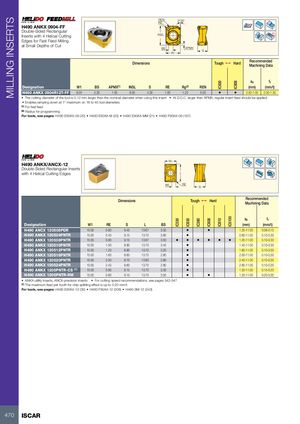

MILLING INSERTS
REN 3°30’
RE
H490 ANKX 0904-FF
Double-Sided Rectangular Rd°
INSL
Inserts with 4 Helical Cutting
Edges for Fast Feed Milling
at Small Depths of Cut APMX
BS
S
W1
Recommended
Dimensions Tough 1 Hard
Machining Data
ap fz
IC830
IC808
Designation W1 BS APMX(1) INSL S RE Rg(2) REN (mm) (mm/t)
H490 ANKX 0904R12T-FF 6.20 2.30 1.00 8.50 4.30 1.00 1.20 5.00 • • 0.50-1.00 0.50-1.50
• The cutting diameter of the tool is 0.12 mm larger than the nominal diameter when using this insert • At D.O.C. larger than APMX, regular insert feed should be applied
• Enables ramping down at 1° maximum on 16 to 40 tool diameters
(1) For fast feed
(2) Radius for programming
For tools, see pages: H490 E90AX-09 (20) • H490 E90AX-M (20) • H490 E90AX-MM (21) • H490 F90AX-09 (197)
W1
H490 ANKX/ANCX-12
Double-Sided Rectangular Inserts 1
with 4 Helical Cutting Edges L
3
BS RE
S
Recommended
Dimensions Tough 1 Hard
Machining Data
ap fz
IC5100
IC330
IC830
IC380
IC808
IC810
Designation W1 RE S L BS (mm) (mm/t)
H490 ANCX 120508PDR 10.00 0.80 9.45 13.67 3.50 • • 1.20-11.00 0.08-0.15
H490 ANKX 120504PNTR 10.00 0.40 9.15 13.70 3.80 • 0.80-11.00 0.10-0.30
H490 ANKX 120508PNTR 10.00 0.80 9.15 13.67 3.50 • • • • • • 1.20-11.00 0.10-0.30
H490 ANKX 120510PNTR 10.00 1.00 8.90 13.70 3.40 • 1.40-11.00 0.10-0.30
H490 ANKX 120512PNTR 10.00 1.20 8.90 13.70 3.20 • 1.60-11.00 0.10-0.30
H490 ANKX 120516PNTR 10.00 1.60 8.60 13.70 2.80 • 2.00-11.00 0.10-0.30
H490 ANKX 120520PNTR 10.00 2.00 8.70 13.60 2.80 • 2.40-11.00 0.10-0.30
H490 ANKX 120524PNTR 10.00 2.40 8.60 13.70 2.80 • 2.80-11.00 0.10-0.30
H490 ANKX 1205PNTR-CS (1) 10.00 0.80 9.15 13.70 3.50 • 1.20-11.00 0.15-0.20
H490 ANKX 1205PNTR-RM 10.00 0.80 9.15 13.70 3.50 • • 1.20-11.00 0.20-0.30
• ANKX-utility inserts, ANCX-precision inserts • For cutting speed recommendations, see pages 542-547
(1) The maximum feed per tooth for chip splitting effect is up to 0.20 mm/t.
For tools, see pages: H490 E90AX-12 (30) • H490 F90AX-12 (206) • H490 SM-12 (243)
470 ISCAR
