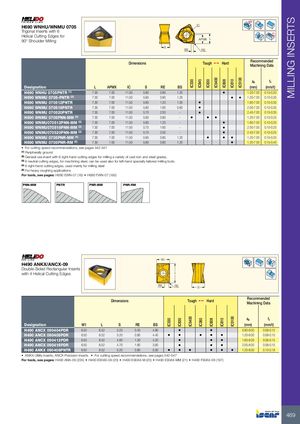

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 153

IC330 IC830 IC330IC5400 IC845IC380 IC830 IC808 IC5400 IC808IC810 IC810IC5100 IC5100 MILLING INSERTS H690 WNHU/WNMU 0705 IC Trigonal Inserts with 6 Rd° Helical Cutting Edges for90° Shoulder Milling APMX L S BS RE Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation L APMX IC S RE BS (mm) (mm/t) H690 WNHU 0705PNTR (1) 7.30 7.00 11.50 5.80 0.80 1.20 • 1.20-7.00 0.10-0.20 H690 WNMU 0705-PNTR (2) 7.30 7.00 11.50 5.90 0.80 1.20 • • 1.20-7.00 0.10-0.35 H690 WNMU 070512PNTR 7.30 7.00 11.50 5.80 1.20 1.00 • 1.60-7.00 0.10-0.35 H690 WNMU 070516PNTR 7.30 7.00 11.50 5.80 1.60 0.60 • 2.00-7.00 0.10-0.35 H690 WNMU 070520PNTR 7.30 7.00 11.50 5.70 2.00 - • 2.40-7.00 0.10-0.35 H690 WNMU 0705PNN-MM (3) 7.30 7.00 11.50 5.90 0.80 - • • • 1.20-7.00 0.10-0.25 H690 WNMU070512PNN-MM (3) 7.30 7.00 11.50 5.80 1.20 - • 1.60-7.00 0.10-0.25 H690 WNMU070516PNN-MM (3) 7.30 7.00 11.50 5.70 1.60 - • 2.00-7.00 0.10-0.25 H690 WNMU070520PNN-MM (3) 7.30 7.00 11.50 5.70 2.00 - • 2.40-7.00 0.10-0.25 H690 WNMU 0705PNR-MM (4) 7.30 7.00 11.50 5.90 0.80 1.20 • • • 1.20-7.00 0.10-0.25 H690 WNMU 0705PNR-RM (5) 7.30 7.00 11.50 5.80 0.80 1.20 • 1.20-7.00 0.15-0.40 • For cutting speed recommendations, see pages 542-547 (1) Peripherally ground (2) General use insert with 6 right-hand cutting edges for milling a variety of cast iron and steel grades. (3) 6 neutral cutting edges, for machining steel, can be used also for left-hand specially tailored milling tools. (4) 6 right-hand cutting edges, used mainly for milling steel (5) For heavy roughing applications For tools, see pages: H690 EWN-07 (16) • H690 FWN-07 (195) PNN-MM PNTR PNR-MM PNR-RM W1 H490 ANKX/ANCX-09 Double-Sided Rectangular Inserts with 4 Helical Cutting Edges L BS RE S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation W1 L S RE BS (mm) (mm/t) H490 ANCX 090404PDR 6.50 8.52 5.20 0.40 4.80 • • 0.80-8.00 0.08-0.15 H490 ANCX 090408PDR 6.50 8.52 5.20 0.80 4.40 • • • • • 1.20-8.00 0.08-0.15 H490 ANCX 090412PDR 6.50 8.52 4.80 1.20 4.20 • • • 1.60-8.00 0.08-0.15 H490 ANCX 090416PDR 6.50 8.52 4.70 1.60 3.60 • • • 2.00-8.00 0.08-0.15 H490 ANKX 090408PNTR 6.50 8.52 5.20 0.80 5.00 • • • • • • 1.20-8.00 0.10-0.18 • ANKX-Utility inserts, ANCX-Precision inserts • For cutting speed recommendations, see pages 542-547 For tools, see pages: H490 ANK-09 (235) • H490 E90AX-09 (20) • H490 E90AX-M (20) • H490 E90AX-MM (21) • H490 F90AX-09 (197) 469 1 3
