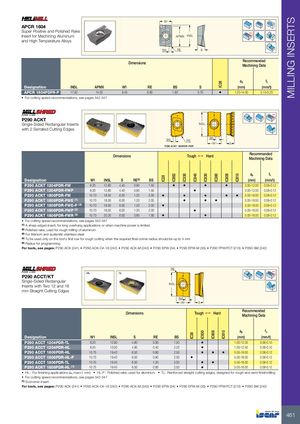

IC28 IC882 IC330 IC28 IC840 IC830 IC830 IC808 IC380 IC28 IC810 IC808 IC810 MILLING INSERTS W1 APCR 1604 Super Positive and Polished Rake Rd° Insert for Machining Aluminum APMX INSL and High Temperature Alloys BS RE S Dimensions RecommendedMachining Data ap fz Designation INSL APMX W1 RE BS S (mm) (mm/t) APCR 1604PDFR-P 17.92 14.00 9.45 0.80 1.80 5.70 • 1.20-14.00 0.15-0.25 • For cutting speed recommendations, see pages 542-547 Rd° P290 ACKT Single-Sided Rectangular Inserts lNSL with 2 Serrated Cutting Edges BS RE BS W1 S P290 ACKT 1806PDR-FWR Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation W1 INSL S RE(5) BS (mm) (mm/t) P290 ACKT 1204PDR-FW 8.20 12.80 4.40 0.90 1.50 • • • • 3.00-12.00 0.08-0.12 P290 ACKT 1204PDR-FWP 8.20 12.80 4.40 0.90 1.50 • 3.00-12.00 0.08-0.12 P290 ACKT 1806PDR-FW 10.70 18.50 6.00 1.20 2.00 • • • • • 5.00-18.00 0.08-0.12 P290 ACKT 1806PDR-FWE (1) 10.70 18.50 6.00 1.20 2.00 • • • 5.00-18.00 0.08-0.12 P290 ACKT 1806PDR-FWE-P (2) 10.70 18.50 6.00 1.20 2.00 • 5.00-18.00 0.08-0.12 P290 ACKT 1806PDR-FWP (3) 10.70 18.50 6.00 1.20 2.00 • 5.00-18.00 0.08-0.12 P290 ACKT 1806PDR-FWR (4) 10.70 20.20 6.00 3.80 1.90 • • 5.00-18.00 0.08-0.12 • For cutting speed recommendations, see pages 542-547 (1) A sharp edged insert, for long overhang applications or when machine power is limited (2) Polished rake, used for rough milling of aluminum (3) For titanium and austenitic stainless steel (4) To be used only on the tool's first row for rough cutting when the required final corner radius should be up to 4 mm (5) Radius for programming For tools, see pages: P290 ACK (241) • P290 ACK-C#-18 (242) • P290 ACK-M (240) • P290 EPW (34) • P290 EPW-M (35) • P290 FPW/FCT (215) • P290 SM (242) RE Rd° P290 ACCT/KT Single-Sided Rectangular Inserts with Two 12 and 18 lNSL mm Straight Cutting Edges BS W1 S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation W1 INSL S RE BS (mm) (mm/t) P290 ACCT 1204PDR-TL 8.20 12.90 4.80 0.90 1.50 • 1.00-12.00 0.06-0.10 P290 ACCT 1204PDR-HL 8.20 13.00 4.80 0.40 2.20 • 1.00-12.00 0.06-0.10 P290 ACCT 1806PDR-HL 10.75 19.40 6.50 0.80 2.50 • • • 5.00-18.00 0.08-0.12 P290 ACCT 1806PDR-HL-P 10.75 19.40 6.50 0.80 2.50 • 5.00-18.00 0.08-0.12 P290 ACCT 1806PDR-TL 10.75 19.40 6.50 1.20 2.00 • • 5.00-18.00 0.08-0.12 P290 ACKT 1806PDR-HL (1) 10.75 19.40 6.50 0.80 2.50 • 5.00-18.00 0.08-0.12 • HL - For finishing applications (ae max=1 mm) • HL-P - Polished rake, used for aluminum • TL- Reinforced straight cutting edges, designed for rough and semi-finishmilling • For cutting speed recommendations, see pages 542-547 (1) Economic insert For tools, see pages: P290 ACK (241) • P290 ACK-C#-18 (242) • P290 ACK-M (240) • P290 EPW (34) • P290 EPW-M (35) • P290 FPW/FCT (215) • P290 SM (242) 461
