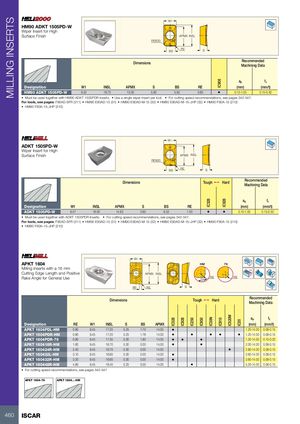

MILLING INSERTS
W1
HM90 ADKT 1505PD-W W
Wiper Insert for High
Surface Finish M9
APMX lNSL
RE820 0
W
RE S
BS
Recommended
Dimensions
Machining Data
ap fz
IC908
Designation W1 INSL APMX S BS RE (mm) (mm/t)
HM90 ADKT 1505PD-W 9.52 16.75 15.00 5.83 5.92 0.80 • 0.10-1.00 0.15-0.30
• Must be used together with HM90 ADKT 1505PDR inserts. • Use a single wiper insert per tool. • For cutting speed recommendations, see pages 542-547.
For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
• HM90 F90A-15-JHP (210)
W1
ADKT 1505PD-W W
Wiper Insert for High
Surface Finish M9
APMX INSL
RE820 0
RE S
BS
Recommended
Dimensions Tough 1 Hard
Machining Data
ap fz
IC328
IC928
Designation W1 INSL APMX S BS RE (mm) (mm/t)
ADKT 1505PD-W 9.57 16.00 14.63 5.60 6.53 1.00 • • 0.10-1.00 0.15-0.30
• Must be used together with ADKT 1505PDR inserts. • For cutting speed recommendations, see pages 542-547.
For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
• HM90 F90A-15-JHP (210)
W1
APKT 1604 HM 76
Milling Inserts with a 16 mm Rd°
Cutting Edge Length and Positive APMX INSL
Rake Angle for General Use RE RE
25˚
BS RE S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520M
ap fz
IC30N
IC328
IC928
IC250
IC950
IC910
IC20
Designation RE W1 INSL S BS APMX (mm) (mm/t)
APKT 1604PDL-HM 0.80 9.45 17.20 5.25 1.70 14.00 • 1.20-14.00 0.08-0.15
APKT 1604PDR-HM 0.80 9.45 17.20 5.25 1.78 14.00 • • • • • 1.20-14.00 0.08-0.15
APKT 1604PDR-76 0.80 9.45 17.30 5.30 1.80 14.00 • • • 1.20-14.00 0.10-0.20
APKT 160416R-HM 1.60 9.45 16.70 5.30 0.00 14.00 • • 2.00-14.00 0.08-0.15
APKT 160424R-HM 2.40 9.45 16.70 5.30 0.00 14.00 • 2.80-14.00 0.08-0.15
APKT 160432L-HM 3.10 9.45 16.60 5.30 0.00 14.00 • 3.60-14.00 0.08-0.15
APKT 160432R-HM 3.20 9.45 16.60 5.30 0.00 14.00 • 3.60-14.00 0.08-0.15
APKT 160448R-HM 4.80 9.45 16.40 5.20 0.00 14.00 • 5.20-14.00 0.08-0.15
• For cutting speed recommendations, see pages 542-547
APKT 1604-76 APKT 1604...-HM
460 ISCAR
