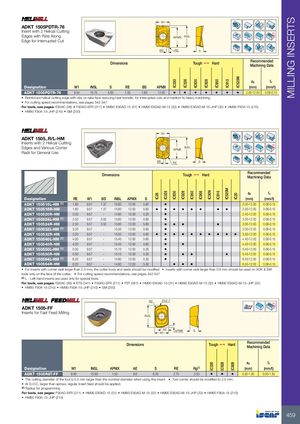

IC28 IC328 IC330IC830 IC328IC928 IC950 IC830 IC908 IC928 IC30NIC330 IC950IC910 IC928 IC910IC520M IC808 IC520MIC20 MILLING INSERTS W1 ADKT 1505PDTR-76 Insert with 2 Helical Cutting Rd° Edges with Ribs Along APMX INSL Edge for Interrupted Cut BS RE S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation W1 INSL S RE BS APMX (mm) (mm/t) ADKT 1505PDTR-76 9.54 15.75 5.63 1.00 1.60 12.00 • • • • • • • 2.00-12.00 0.08-0.15 • Reinforced helical cutting edge with ribs on rake face reducing heat transfer, for interrupted cuts and medium to heavy machining. • For cutting speed recommendations, see pages 542-547 For tools, see pages: E90AC (36) • F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210) • HM90 F90A-15-JHP (210) • SM (250) W1 ADKT 1505..R/L-HM Inserts with 2 Helical Cutting Rd° Edges and Various Corner INSLAPMX Radii for General Use BS RE S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation RE W1 BS INSL APMX S (mm) (mm/t) ADKT 150516L-HM (1) 1.60 9.57 1.37 15.60 12.00 5.60 • 2.00-12.00 0.08-0.15 ADKT 150516R-HM 1.60 9.57 1.37 15.60 12.00 5.60 • • • • • • • • 2.00-12.00 0.08-0.15 ADKT 150520R-HM 2.00 9.57 - 14.80 12.00 5.20 • 2.40-12.00 0.08-0.15 ADKT 150524L-HM (1) 2.50 9.57 0.52 15.60 12.00 5.60 • 3.00-12.00 0.08-0.15 ADKT 150524R-HM 2.50 9.57 0.52 15.60 12.00 5.60 • • • • 3.00-12.00 0.08-0.15 ADKT 150532L-HM (1) 3.20 9.57 - 15.50 12.00 5.60 • 3.00-12.00 0.08-0.15 ADKT 150532R-HM 3.20 9.57 - 15.50 12.00 5.60 • • • • • • • • • • 3.50-12.00 0.08-0.15 ADKT 150540L-HM (1) 4.00 9.57 - 15.40 12.00 5.60 • 4.40-12.00 0.08-0.15 ADKT 150540R-HM 4.00 9.57 - 15.40 12.00 5.60 • • 4.40-12.00 0.08-0.15 ADKT 150550L-HM (1) 5.00 9.57 - 15.10 12.00 5.30 • 5.40-12.00 0.08-0.15 ADKT 150550R-HM 5.00 9.57 - 15.10 12.00 5.30 • • • • 5.40-12.00 0.08-0.15 ADKT 150564L-HM (1) 6.20 9.57 - 14.80 12.00 5.30 • 6.50-12.00 0.08-0.15 ADKT 150564R-HM 6.20 9.57 - 14.80 12.00 5.30 • • • 6.50-12.00 0.08-0.15 • For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified • Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter. • For cutting speed recommendations, see pages 542-547 (1) L - Left-hand inserts are used only for special tools. For tools, see pages: E90AC (36) • ETS (341) • F90AD-SFR (211) • FST (361) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210) • HM90 F90A-15-JHP (210) • SM (250) RE R12.7 Rd° ADKT 1505-FF Inserts for Fast Feed Milling INSL AEW1 APMX S Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation W1 INSL APMX AE S RE Rg(1) (mm) (mm/t) ADKT 1505R8T-FF 9.90 15.90 1.50 6.6 6.20 2.70 3.50 • • • 0.50-1.00 0.50-1.50 • The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert. • Tool corner should be modified to 2.0 mm. • At D.O.C. larger than apmax, regular insert feed should be applied. (1) Radius for programming For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210) • HM90 F90A-15-JHP (210) 459
