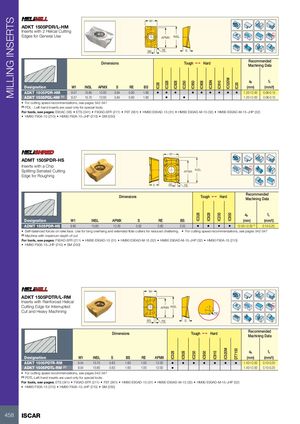

ADKT 1505PDR/L-HM Inserts with 2 Helical Cutting Edges for General Use
Rd° APMX INSL
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard Machining Data
a f p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | ||||||||||
| ADKT 1505PDR-HM | 9.57 | 15.65 | 12.00 | 5.64 | 0.80 | 1.60 | • | • | • | • | • | • | • | • | • | 1.20-12.00 | 0.08-0.15 | |
| ADKT 1505PDL-HM (1) | 9.57 | 15.70 | 12.00 | 5.64 | 0.80 | 1.60 | • | • | 1.20-12.00 | 0.08-0.15 |
- For cutting speed recommendations, see pages 542-547
(1) PDL - Left-hand inserts are used only for special tools.
For tools, see pages: E90AC (36) ETS (341) F90AD-SFR (211) FST (361) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32)
- HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
W1 ADMT 1505PDR-HS Inserts with a Chip Rd° Splitting Serrated Cutting INSL APMX Edge for Roughing
| S | BS | RE | |
| Recommended |
Dimensions Tough 1 Hard
Machining Data
a p fz
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | |||||
| ADMT 1505PDR-HS | 9.60 | 15.85 | 12.00 | 5.92 | 0.80 | 2.00 | • | • | • | • | 12.00-12.00 (1) | 0.10-0.20 |
- Self-balanced forces on rake face. Use for long overhang and extended flute cutters for reduced chattering.
- For cutting speed recommendations, see pages 542-547
(1) Machine with maximum depth of cut
For tools, see pages: F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
W1 ADKT 1505PDTR/L-RM Inserts with Reinforced Helical Cutting Edge for Interrupted Rd° APMX INSL Cut and Heavy Machining RE
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard
Machining Data
ap fz
| Designation | W1 | INSL | S | BS | RE | APMX | (mm) | (mm/t) | |||||||
| ADKT 1505PDTR-RM | 9.54 | 15.75 | 5.63 | 1.60 | 1.00 | 12.00 | • | • | • | • | • | • | • | 1.40-12.00 | 0.10-0.20 |
| ADKT 1505PDTL-RM (1) | 9.54 | 15.80 | 5.63 | 1.60 | 1.00 | 12.00 | • | 1.40-12.00 | 0.10-0.20 |
- For cutting speed recommendations, see pages 542-547
(1) PDTL-Left-hand inserts are used only for special tools.
For tools, see pages: ETS (341) F90AD-SFR (211) FST (361) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32)
- HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
