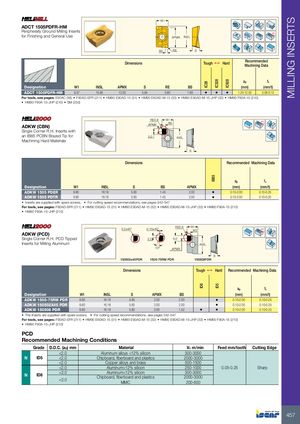

ADCT 1505PDFR-HM Peripherally Ground Milling Inserts for Finishing and General Use
Rd° APMX INSL
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard Machining Data
a f p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | |||
| ADCT 1505PDFR-HM | 9.57 | 15.65 | 12.00 | 5.64 | 0.80 | 1.60 | • | • | • | 1.20-12.00 | 0.06-0.12 |
For tools, see pages: E90AC (36) F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
RE0.8 W 1 BS Rd° ADKW (CBN) APMX Single Corner R.H. Inserts with an IB85 PCBN Brazed Tip for 5.0 Machining Hard Materials INSL
S Dimensions Recommended Machining Data
a f p z
| Designation | W1 | INSL | S | BS | APMX | (mm) | (mm/t) | |
| ADKW 1505 PDER | 9.60 | 16.18 | 5.83 | 1.45 | 2.00 | • | 0.10-2.00 | 0.10-0.25 |
| ADKW 1505 PDTR | 9.60 | 16.18 | 5.83 | 1.45 | 2.00 | • | 0.10-2.00 | 0.10-0.25 |
- Inserts are supplied with spare screws.
- For cutting speed recommendations, see pages 542-547
For tools, see pages: F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
| ADKW (PCD) Single Corner R.H. PCD Tipped Inserts for Milling Aluminum | 0.2x45° 150502x45PDR | 2.0 0.15x45° 15º 1505-75RM | RE0.8 5.0 APMX PDR | INSL W1 BS 150508PD | S R | Rd° | |||
| Dimensions | Tough1 | Hard | Recommended | Machining Data | |||||
| Designation | W1 | INSL | S | APMX | BS | ID8 | ID5 | ap (mm) | fz (mm/t) |
| ADKW 1505-75RM PDR | 9.60 | 16.18 | 5.83 | 2.00 | 2.00 | • | 0.10-2.00 | 0.10-0.25 | |
| ADKW 150502X45 PDR | 9.60 | 16.18 | 5.83 | 2.00 | 2.00 | • | 0.10-2.00 | 0.10-0.25 | |
| ADKW 150508 PDR | 9.60 | 16.18 | 5.83 | 2.00 | 1.52 | • | • | 0.10-2.00 | 0.10-0.25 |
- The inserts are supplied with spare screws.
- For cutting speed recommendations, see pages 542-547
For tools, see pages: F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
PCD
Recommended Machining Conditions
| Grade | D.O.C.(ap) mm | Material | Vc m/min | Feed mm/tooth | Cutting Edge |
| Aluminum alloys | 300-3000 | ||||
| N ID5 | Chipboard, fiberboard and plastics | 2000-3000 | |||
| Copper alloys and brass | 500-1500 | ||||
| Aluminum>12% silicon | 250-1000 | 0.05-0.25 | Sharp | ||
| N ID8 | Aluminum | 300-3000 | |||
| Chipboard, fiberboard and plastics MMC | 2000-3000 200-600 |
