Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 140
Навигация
Каталог Iscar крепление инструмента
Каталог Iscar инструмент для обработки отверстий
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмента для сверления
Каталог Iscar решения для глубокого сверления

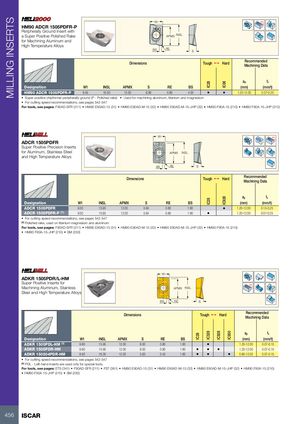

HM90 ADCR 1505PDFR-P
Peripherally Ground Insert with
a Super Positive Polished Rake
for Machining Aluminum and
High Temperature Alloys
Dimensions
W1 Rd°
APMX INSL
BS RE S
Recommended
Tough 1 Hard Machining Data
a f
p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | ||
| HM90 ADCR 1505PDFR-P | 9.55 | 16.50 | 12.00 | 6.90 | 0.80 | 4.00 | • | • | 1.20-12.00 | 0.07-0.25 |
- Super positive chipformer peripherally ground (P - Polished rake)
- Used for machining aluminum, titanium and magnesium
- For cutting speed recommendations, see pages 542-547
For tools, see pages: F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210) HM90 F90A-15-JHP (210)
W 1 Rd°
ADCR 1505PDFR
Super Positive Precision Inserts
for Aluminum, Stainless Steel INSL APMX
and High Temperature Alloys
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard
Machining Data
a f
p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | ||
| ADCR 1505PDFR | 9.50 | 15.95 | 12.00 | 5.64 | 0.80 | 1.60 | • | 1.20-12.00 | 0.15-0.25 | |
| ADCR 1505PDFR-P (1) | 9.50 | 15.95 | 12.00 | 5.64 | 0.80 | 1.60 | • | 1.20-12.00 | 0.07-0.25 |
- For cutting speed recommendations, see pages 542-547
(1) Polished rake, used on titanium magnesium and aluminum
For tools, see pages: F90AD-SFR (211) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
ADKR 1505PDR/L-HM
Super Positive Inserts for
Machining Aluminum, Stainless
Steel and High Temperature Alloys
Dimensions
W1 Rd° APMX INSL
BS RE S
Tough Hard Recommended
1 Machining Data
a f
p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | ||||
| ADKR 1505PDL-HM (1) | 9.60 | 15.95 | 12.00 | 6.00 | 0.80 | 1.60 | • | 1.20-12.00 | 0.07-0.15 | |||
| ADKR 1505PDR-HM | 9.60 | 15.95 | 12.00 | 6.00 | 0.80 | 1.60 | • | • | • | 1.20-12.00 | 0.07-0.15 | |
| ADKR 150504PDR-HM | 9.92 | 16.30 | 12.00 | 5.63 | 0.40 | 1.60 | • | • | • | 0.80-12.00 | 0.07-0.15 |
- For cutting speed recommendations, see pages 542-547
(1) PDL - Left-hand inserts are used only for special tools.
For tools, see pages: ETS (341) F90AD-SFR (211) FST (361) HM90 E90AD-15 (31) HM90 E90AD-M-15 (32) HM90 E90AD-M-15-JHP (32) HM90 F90A-15 (210)
- HM90 F90A-15-JHP (210)
- SM (250)
