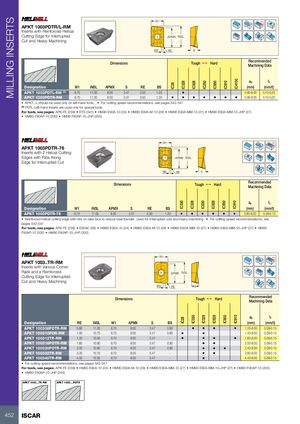

APKT 1003PDTR/L-RM
Inserts with Reinforced Helical
Cutting Edge for Interrupted
Cut and Heavy Machining
APMX INSL
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard Machining Data
a f
p z
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | |||||||
| APKT 1003PDTL-RM (1) | 6.70 | 11.00 | 8.00 | 3.47 | 0.50 | 1.20 | • | 0.90-8.00 | 0.10-0.20 | ||||||
| APKT 1003PDTR-RM | 6.70 | 11.00 | 8.00 | 3.47 | 0.50 | 1.20 | • | • | • | • | • | • | • | 0.90-8.00 | 0.10-0.20 |
- APKT...L should be used only on left-hand tools.
- For cutting speed recommendations, see pages 542-547
(1) PDTL-Left-hand inserts are used only for special tools.
For tools, see pages: APK-FE (239) ETS (341) HM90 E90A-10 (24) HM90 E90A-M-10 (28) HM90 E90A-MM-10 (27) HM90 E90A-MM-10-JHP (27)
- HM90 F90AP-10 (200)
- HM90 F90AP-10-JHP (200)
W 1 Rd°
APKT 1003PDTR-76
Inserts with 2 Helical Cutting
Edges with Ribs Along APMX INSL
Edge for Interrupted Cut
| BS | RE | S | |
| Recommended |
Dimensions Tough 1 Hard
Machining Data
a p fz
| Designation | W1 | INSL | APMX | S | RE | BS | (mm) | (mm/t) | ||||||
| APKT 1003PDTR-76 | 6.70 | 11.00 | 8.00 | 3.47 | 0.50 | 1.20 | • | • | • | • | • | • | 0.90-8.00 | 0.08-0.15 |
- Reinforced helical cutting edge with ribs on rake face to reduce heat transfer. Used for interrupted cuts and heavy machining
- For cutting speed recommendations, see
pages 542-547
For tools, see pages: APK-FE (239) E90AC (36) HM90 E90A-10 (24) HM90 E90A-M-10 (28) HM90 E90A-MM-10 (27) HM90 E90A-MM-10-JHP (27) HM90 F90AP-10 (200) HM90 F90AP-10-JHP (200)
APKT 1003..TR-RM
Inserts with Various Corner
Radii and a Reinforced
Cutting Edge for Interrupted
Cut and Heavy Machining
Dimensions
W 1
INSL APMX
BS RE S
Tough 1 Hard
Rd°
Recommended
Machining Data
a f
p z
| Designation | RE | INSL | W1 | APMX | S | BS | (mm) | (mm/t) | ||||
| APKT 100308PDTR-RM | 0.80 | 11.00 | 6.70 | 8.00 | 3.47 | 0.90 | • • | • | • | 1.20-8.00 | 0.08-0.15 | |
| APKT 100310PDR-RM | 1.00 | 10.75 | 6.70 | 8.00 | 3.47 | 0.60 | • | • | 1.40-8.00 | 0.08-0.15 | ||
| APKT 100312TR-RM | 1.20 | 10.50 | 6.70 | 8.00 | 3.47 | - | • | • | • | • | 1.60-8.00 | 0.08-0.15 |
| APKT 100316PDTR-RM | 1.60 | 10.90 | 6.70 | 8.00 | 3.47 | 0.80 | • | • | 2.00-8.00 | 0.08-0.15 | ||
| APKT 100320PDTR-RM | 2.00 | 10.90 | 6.70 | 8.00 | 3.47 | 0.80 | • | • | • | 2.40-8.00 | 0.08-0.15 | |
| APKT 100332TR-RM | 3.20 | 10.70 | 6.70 | 8.00 | 3.47 | - | • | • | 3.60-8.00 | 0.08-0.15 | ||
| APKT 100340TR-RM | 4.00 | 10.55 | 6.70 | 8.00 | 3.47 | - | • | 4.40-8.00 | 0.08-0.15 |
- For cutting speed recommendations, see pages 542-547
For tools, see pages: APK-FE (239) HM90 E90A-10 (24) HM90 E90A-M-10 (28) HM90 E90A-MM-10 (27) HM90 E90A-MM-10-JHP (27) HM90 F90AP-10 (200)
- HM90 F90AP-10-JHP (200)
APKT 1003…TR-RM APKT 1003….PDTR
