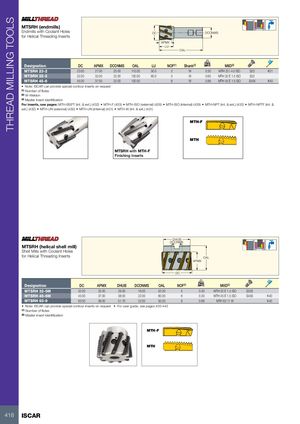

MTSRH (endmills)
| ms w ooan oes r Helical Threading Inserts | DC | LU APMX | OAL | DCON | MS | ||||||
| Designation | DC | APMX | DCONMS | OAL | LU | NOF(1) | Shank(2) | kg | MIID(3) | ||
| MTSRH 23-2 | 23.00 | 27.00 | 25.00 | 110.00 | 50.0 | 2 | W | 0.30 | MTH 23 I 4.0 ISO | S23 | K21 |
| MTSRH 32-5 | 32.00 | 32.00 | 32.00 | 130.00 | 60.0 | 5 | W | 0.65 | MTH 32 E 1.5 ISO | S32 | |
| MTSRH 45-6 | 45.00 | 37.00 | 32.00 | 130.00 | - | 6 | W | 0.88 | MTH 45 E 1.5 ISO | S45X | K40 |
- Note: ISCAR can provide special contour inserts on request
(1) Number of flutes (2) W-Weldon (3) Master insert identification
For inserts, see pages: MTH-BSPT (int. & ext.) (432) MTH-F (433) MTH-ISO (external) (428) MTH-ISO (internal) (429) MTH-NPT (int. & ext.) (432) MTH-NPTF (int. & ext.) (432) MTH-UN (external) (430) MTH-UN (internal) (431) MTH-W (int. & ext.) (431)
MTH-F
MTH MTSRH with MTH-F Finishing Inserts
| MTSRH (helical shell mill) Shell Mills with Coolant Holes for Helical Threading Inserts | DCONMS DHUB DC | OAL APMX | ||||||||
| Designation | DC | APMX | DHUB | DCONMS | OAL | NOF(1) | kg | MIID(2) | ||
| MTSRH 32-5M | 32.00 | 32.00 | 26.00 | 16.00 | 52.00 | 5 | 0.00 | MTH 32 E 1.5 ISO | S32S | |
| MTSRH 45-6M | 45.00 | 37.00 | 38.00 | 22.00 | 60.00 | 6 | 0.30 | MTH 45 E 1.5 ISO | S45S | K40 |
| MTSRH 63-9 | 63.00 | 38.00 | 51.70 | 22.00 | 50.00 | 9 | 0.66 | MTH 63 11 W | K40 |
- Note: ISCAR can provide special contour inserts on request
- For user guide, see pages 435-442
(1) Number of flutes (2) Master insert identification
MTH-F
MTH
