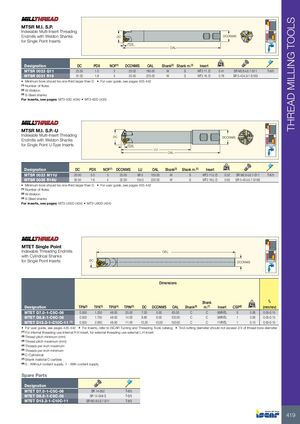

| MTSR M.I. S.P. Indexable Multi-Insert Threading Endmills with Weldon Shanks for Single Point Inserts | DC | PDX | OAL | DCONMS | |||||
| Designation DC | PDX | NOF(1) | DCONMS | OAL | Shank(2) | Shank m.(3) | Insert | kg | |
| MTSR 0023 Q11 23.50 | 1.0 | 3 | 20.00 | 190.00 | W | S | MT3 11..D | 0.41 SR M2.6-L6.7-S11 | T-8/5 |
| MTSR 0031 R16 31.00 | 1.8 | 3 | 25.00 | 225.00 | W | S | MT3 16..D | 0.76 SR 5-40-L9.7-S16S |
- Minimum bore should be one-third larger than D
- For user guide, see pages 435-442
(1) Number of flutes (2) W-Weldon (3) S-Steel shanks
For inserts, see pages: MT3-55D (434) MT3-60D (433)
| MTSR M.I. S.P.-U Indexable Multi-Insert Threading Endmills with Weldon Shanks for Single Point U-Type Inserts | PDX DC | LU | OAL | DCONMS | ||||||
| Designation DC | PDX | NOF(1) DCONMS | LU | OAL | Shank(2) | Shank m.(3) | Insert | kg | ||
| MTSR 0023 M11U 23.00 | 5.0 | 3 25.00 | 88.0 | 150.00 | W | S | MT3 11U..D | 0.32 | SR M2.6-L6.7-S11 | T-8/5 |
| MTSR 0035 R16U 35.50 | 7.6 | 4 32.00 | 155.0 | 220.00 | W | S | MT3 16U..D | 0.95 | SR 5-40-L9.7-S16S |
- Minimum bore should be one-third larger than D
- For user guide, see pages 435-442
(1) Number of flutes (2) W-Weldon (3) S-Steel shanks
For inserts, see pages: MT3-U55D (434) MT3-U60D (434)
MTET Single Point
| dexable Threading Endmills | OAL | |||||||||||
| ith Cylindrical Shanks r Single Point Inserts | D | C | DCONMS | |||||||||
| Dimen | sions | |||||||||||
| Designation | TPN(2) | TPX(3) | TPIX(4) | TPIN(5) | DC | DCONMS | OAL | Shank(6) | Shank m.(7) | Insert | CSP(8) kg | fz (mm/rev) |
| MTET D7.0-1-C5C-06 | 0.500 | 1.250 | 48.00 | 20.00 | 7.00 | 5.00 | 63.00 | C | C | 06IR/EL | 0 0.06 | 0.05-0.15 |
| MTET D8.8-1-C6C-08 | 0.500 | 1.750 | 48.00 | 14.00 | 8.80 | 6.00 | 100.00 | C | C | 08IR/EL | 1 0.06 | 0.05-0.15 |
| MTET D13.2-1-C10C-11(1) | 0.500 | 2.000 | 48.00 | 11.00 | 13.20 | 10.00 | 150.00 | C | C | 11IR/EL | 1 0.13 | 0.05-0.15 |
- For user guide, see pages 435-442
- For inserts, refer to ISCAR Turning and Threading Tools catalog
- Tool cutting diameter should not exceed 2/3 of thread bore diameter
(1) For internal threading use internal R.H insert, for external threading use external L.H insert (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch maximum (5) Threads per inch minimum (6) C-Cylindrical (7) Shank material C-carbide (8) 0 - Without coolant supply, 1 - With coolant supply
Spare Parts
| Designation | ||
| MTET D7.0-1-C5C-06 | SR 14-552 | T-6/5 |
| MTET D8.8-1-C6C-08 | SR 14-558-S | T-6/5 |
| MTET D13.2-1-C10C-11 | SR M2.6-L6.7-S11 | T-8/5 |
