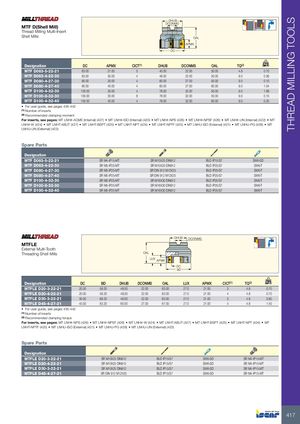

| TF D(Shell Mill) hread Milling Multi-Insert hell Mills | DHU DC DCON | B MS OAL APMX | ||||||
| Designation | DC | APMX | CICT(1) | DHUB | DCONMS | OAL | TQ(2) | kg |
| MTF D063-5-22-21 | 63.00 | 21.00 | 5 | 40.00 | 22.00 | 50.00 | 4.8 | 0.70 |
| MTF D063-4-22-30 | 63.00 | 30.00 | 4 | 48.00 | 22.00 | 50.00 | 9.0 | 0.56 |
| MTF D080-4-27-30 | 80.00 | 30.00 | 4 | 60.00 | 27.00 | 50.00 | 9.0 | 0.10 |
| MTF D080-4-27-40 | 80.00 | 40.00 | 4 | 60.00 | 27.00 | 60.00 | 9.0 | 1.04 |
| MTF D100-4-32-30 | 100.00 | 30.00 | 4 | 78.00 | 32.00 | 50.00 | 9.0 | 1.89 |
| MTF D100-8-32-30 | 100.00 | 30.00 | 8 | 78.00 | 32.00 | 50.00 | 9.0 | 0.15 |
| MTF D100-4-32-40 | 100.00 | 40.00 | 4 | 78.00 | 32.00 | 60.00 | 9.0 | 0.20 |
- For user guide, see pages 435-442
(1) Number of inserts (2) Recommended clamping moment
For inserts, see pages: MT LNH#-ACME (Internal) (427) MT LNH#-ISO (Internal) (420) MT LNH#-NPS (426) MT LNH#-NPSF (426) MT LNH#-UN (Internal) (422) MT LNH#-W (424) MT LNHT-ABUT (427) MT LNHT-BSPT (425) MT LNHT-NPT (424) MT LNHT-NPTF (425) MT LNHU-ISO (External) (421) MT LNHU-PG (428) MT LNHU-UN (External) (423)
Spare Parts
| Designation | ||||
| MTF D063-5-22-21 | SR M4-IP15-MT | SR M10X25 DIN912 | BLD IP15/S7 | SW6-SD |
| MTF D063-4-22-30 | SR M5-IP25-MT | SR M10X25 DIN912 | BLD IP25/S7 | SW6-T |
| MTF D080-4-27-30 | SR M5-IP25-MT | SR DIN 912 M12X25 | BLD IP25/S7 | SW6-T |
| MTF D080-4-27-40 | SR M5-IP25-MT | SR DIN 912 M12X25 | BLD IP25/S7 | SW6-T |
| MTF D100-4-32-30 | SR M5-IP25-MT | SR M16X30 DIN912 | BLD IP25/S7 | SW6-T |
| MTF D100-8-32-30 | SR M5-IP25-MT | SR M16X30 DIN912 | BLD IP25/S7 | SW6-T |
| MTF D100-4-32-40 | SR M5-IP25-MT | SR M16X30 DIN912 | BLD IP25/S7 | SW6-T |
| DCONMS DHUB | ||
| MTFLE | ||
| External Multi-Tooth | ||
| Threading Shell Mills | OAL APMX LUX | DC BD |
| Designation | DC | BD | DHUB | DCONMS | OAL | LUX | APMX | CICT(1) | TQ(2) | kg |
| MTFLE D20-3-22-21 | 20.00 | 58.20 | 48.00 | 22.00 | 63.00 | 27.0 | 21.00 | 3 | 4.8 | 0.70 |
| MTFLE D20-4-22-21 | 20.00 | 58.20 | 48.00 | 22.00 | 63.00 | 27.0 | 21.00 | 4 | 4.8 | 0.70 |
| MTFLE D30-3-22-21 | 30.00 | 68.20 | 48.00 | 22.00 | 63.00 | 27.0 | 21.00 | 3 | 4.8 | 0.90 |
| MTFLE D45-4-27-21 | 45.00 | 83.20 | 60.00 | 27.00 | 67.00 | 27.0 | 21.00 | 4 | 4.8 | 1.40 |
- For user guide, see pages 435-442
(1) Number of inserts (2) Recommended clamping torque
For inserts, see pages: MT LNH#-NPS (426) MT LNH#-NPSF (426) MT LNH#-W (424) MT LNHT-ABUT (427) MT LNHT-BSPT (425) MT LNHT-NPT (424) MT LNHT-NPTF (425) MT LNHU-ISO (External) (421) MT LNHU-PG (428) MT LNHU-UN (External) (423)
Spare Parts
| Designation | ||||
| MTFLE D20-3-22-21 | SR M10X25 DIN912 | BLD IP15/S7 | SW6-SD | SR M4-IP15-MT |
| MTFLE D20-4-22-21 | SR M10X25 DIN912 | BLD IP15/S7 | SW6-SD | SR M4-IP15-MT |
| MTFLE D30-3-22-21 | SR M10X25 DIN912 | BLD IP15/S7 | SW6-SD | SR M4-IP15-MT |
| MTFLE D45-4-27-21 | SR DIN 912 M12X25 | BLD IP15/S7 | SW6-SD | SR M4-IP15-MT |
