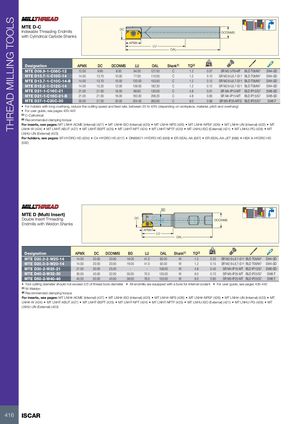

| MTE D-C Indexable Threading Endmills with Cylindrical Carbide Shanks | DC | APMX | LU | OAL | DCONMS | ||||||
| Designation | APMX | DC | DCONMS | LU | OAL | Shank(1) | TQ(2) | kg | |||
| MTE D09.9-1-C08C-12 | 12.00 | 9.90 | 8.00 | 94.00 | 127.00 | C | 1.2 | 0.07 | SR M2.5-T8-MT | BLD T08/M7 | SW4-SD |
| MTE D13.7-1-C10C-14 | 14.00 | 13.70 | 10.00 | 77.00 | 110.00 | C | 1.2 | 0.10 | SR M2.6-L6.7-S11 | BLD T08/M7 | SW4-SD |
| MTE D13.7-1-C10C-14-B | 14.00 | 13.70 | 10.00 | 120.00 | 153.50 | C | 1.2 | 0.12 | SR M2.6-L6.7-S11 | BLD T08/M7 | SW4-SD |
| MTE D15.2-1-C12C-14 | 14.00 | 15.20 | 12.00 | 139.00 | 182.30 | C | 1.2 | 0.12 | SR M2.6-L6.7-S11 | BLD T08/M7 | SW4-SD |
| MTE D21-1-C16C-21 | 21.00 | 21.00 | 16.00 | 86.60 | 130.00 | C | 4.8 | 0.01 | SR M4-IP15-MT | BLD IP15/S7 | SW6-SD |
| MTE D21-1-C16C-21-B | 21.00 | 21.00 | 16.00 | 163.00 | 206.30 | C | 4.8 | 0.60 | SR M4-IP15-MT | BLD IP15/S7 | SW6-SD |
| MTE D27-1-C20C-30 | 30.00 | 27.00 | 20.00 | 204.00 | 263.00 | C | 9.0 | 0.99 | SR M5-IP25-MT-S | BLD IP25/S7 | SW6-T |
- For holders with long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)
- For user guide, see pages 435-442
(1) C-Cylindrical (2) Recommended clamping torque
For inserts, see pages: MT LNH#-ACME (Internal) (427) MT LNH#-ISO (Internal) (420) MT LNH#-NPS (426) MT LNH#-NPSF (426) MT LNH#-UN (Internal) (422) MT LNH#-W (424) MT LNHT-ABUT (427) MT LNHT-BSPT (425) MT LNHT-NPT (424) MT LNHT-NPTF (425) MT LNHU-ISO (External) (421) MT LNHU-PG (428) MT LNHU-UN (External) (423)
For holders, see pages: BT-HYDRO HD (634) C#-HYDRO HD (617) DIN69871-HYDRO HD (569) ER-SEAL-AA (687) ER-SEAL-AA-JET (688) HSK A-HYDRO HD (592)
MTE D (Multi Insert)
Double Insert Threading
Endmills with Weldon Shanks
BD DC
APMX LU
DCONMS
OAL
| Designation | APMX | DC | DCONMS | BD | LU | OAL | Shank(1) | TQ(2) | kg | |||
| MTE D20.0-2-W20-14 | 14.00 | 20.00 | 20.00 | 16.00 | 41.0 | 93.00 | W | 1.2 | 0.20 | SR M2.6-L6.7-S11 | BLD T08/M7 | SW4-SD |
| MTE D20.0-3-W20-14 | 14.00 | 20.00 | 20.00 | 16.00 | 41.0 | 93.00 | W | 1.2 | 0.15 | SR M2.6-L6.7-S11 | BLD T08/M7 | SW4-SD |
| MTE D30-2-W25-21 | 21.00 | 30.00 | 25.00 | - | - | 108.00 | W | 4.8 | 0.40 | SR M4-IP15-MT | BLD IP15/S7 | SW6-SD |
| MTE D40-2-W32-30 | 30.00 | 40.00 | 32.00 | 30.00 | 70.0 | 130.00 | W | 9.0 | 0.70 | SR M5-IP25-MT | BLD IP25/S7 | SW6-T |
| MTE D50-2-W40-40 | 40.00 | 50.00 | 40.00 | 38.00 | 78.0 | 153.00 | W | 9.0 | 0.80 | SR M5-IP25-MT | BLD IP25/S7 | SW6-T |
- Tool cutting diameter should not exceed 2/3 of thread bore diameter
- All endmills are equipped with a bore for internal coolant
- For user guide, see pages 435-442
(1) W-Weldon (2) Recommended clamping torque
For inserts, see pages: MT LNH#-ACME (Internal) (427) MT LNH#-ISO (Internal) (420) MT LNH#-NPS (426) MT LNH#-NPSF (426) MT LNH#-UN (Internal) (422) MT LNH#-W (424) MT LNHT-ABUT (427) MT LNHT-BSPT (425) MT LNHT-NPT (424) MT LNHT-NPTF (425) MT LNHU-ISO (External) (421) MT LNHU-PG (428) MT LNHU-UN (External) (423)
