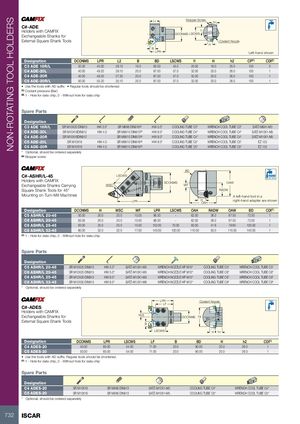

| C#-ADE Holders with CAMFIX Exchangeable Shanks for External Square Shank Tools | | | | | B LPR L2 | DCONM S | S topper Scr LSCWS l1 | Coolant Nozzle ew H h2 BD | Left-ha | nd shown |
| Designation | DCONMS | LPR | L2 | B | BD | LSCWS | l1 | H h2 | CP(1) | CDI(2) |
| C3 ADE 16R/L | 32.00 | 45.00 | 28.10 | 16.0 | 65.00 | 45.0 | 20.00 | 16.0 20.0 | 100 | 0 |
| C4 ADE-20L | 40.00 | 49.20 | 29.10 | 20.0 | 87.00 | 57.0 | 32.00 | 20.0 26.0 | 100 | 1 |
| C4 ADE-20R | 40.00 | 49.20 | 27.30 | 20.0 | 87.00 | 57.0 | 32.00 | 20.0 26.0 | 100 | 1 |
| C5 ADE-20R/L | 50.00 | 55.20 | 35.10 | 20.0 | 87.00 | 57.0 | 32.00 | 20.0 26.0 | 100 | 1 |
- Use the tools with AD suffix
- Regular tools should be shortened
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | | | | | | | |
| C3 ADE 16R/L | SR M10X20 DIN915 | HW 3.0 | SR M6X8 DIN916(a) | HW 5.0 | COOLING TUBE C3 | WRENCH COOL TUBE C3 | SATZ-M8X1-M3 |
| C4 ADE-20L | SR M10X16DIN912 | HW 4.0 | SR M8X10 DIN913(a) | HW 8.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 | SATZ-M10X1-M5 |
| C4 ADE-20R | SR M10X16DIN912 | | SR M8X10 DIN913(a) | HW 8.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 | SATZ-M10X1-M5 |
| C5 ADE-20L | SR M10X16 | HW 4.0 | SR M8X10 DIN916(a) | HW 8.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 | EZ 125 |
| C5 ADE-20R | SR M10X16 | HW 4.0 | SR M8X10 DIN916(a) | | COOLING TUBE C5 | WRENCH COOL TUBE C5 | EZ 125 |
- Optional, should be ordered separately
(a) Stopper screw
| C#-ASHR/L-45 Holders with CAMFIX Exchangeable Shanks Carrying Square Shank Tools for 45° Mounting on Turn-Mill Machine | s | LSCWS WSC | LPR | | DCONMS | WF BD | OAH H | RADW OAW A left- right- | hand tool in hand adapter | a are shown Bar Max |
| Designation | DCONMS | H WSC | WF | LPR | LSCWS | OAH | RADW | OAW | BD | CDI(1) |
| C5 ASHR/L 20-45 | 50.00 | 20.0 20.0 | 15.00 | 96.30 | - | 62.0 | 0 36.0 | 67.50 | 72.00 | 1 |
| C6 ASHR/L 20-45 | 63.00 | 20.0 20.0 | 15.00 | 98.30 | - | 62.0 | 0 36.0 | 67.50 | 72.00 | 1 |
| C6 ASHR/L 25-45 | 63.00 | 25.0 25.0 | 15.00 | 102.00 | 70.00 | 83.0 | 0 41.6 | 79.60 | 100.00 | 1 |
| C8 ASHR/L 32-45 | 80.00 | 32.0 32.0 | 17.00 | 140.00 | 100.00 | 110.0 | 0 50.0 | 110.00 | 140.00 | 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | | | | | | |
| C5 ASHR/L 20-45 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C6 ASHR/L 20-45 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ASHR/L 25-45 | SR M12X30 DIN915 | HW 6.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C8 ASHR/L 32-45 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
- Optional, should be ordered separately
| C#-ADES Holders with CAMFIX Exchangeable Shanks for External Square Shank Tools | | | LSCWS Coolant Nozzle B 16.6 DCONMS LF LPR 74 H h2 BD | | |
| Designation | DCONMS | LPR | LSCWS LF B BD H | h2 | CDI(1) |
| C4 ADES-20 | 40.00 | 85.00 | 54.00 71.00 20.0 90.00 20.0 | 26.0 | 1 |
| C5 ADES-20 | 50.00 | 85.00 | 54.00 71.00 20.0 90.00 20.0 | 26.0 | 1 |
- Use the tools with AD suffix. Regular tools should be shortened.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | | | | | |
| C4 ADES-20 | SR M10X16 | SR M8X6 DIN913 | SATZ-M10X1-M5 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C5 ADES-20 | SR M10X16 | SR M8X6 DIN913 | SATZ-M10X1-M5 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
