| LPR | DCONWS | ||
| LSCWS | DCONMS BD | TDZ | Bar Max |

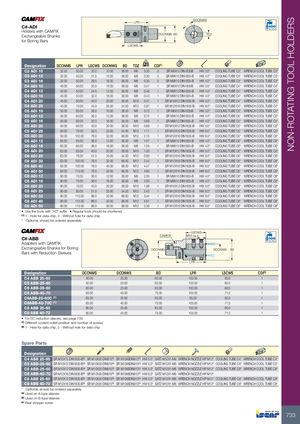

C#-ADI
for Boring Bars
| Designation | DCONMS | LPR | LSCWS | DCONWS | BD | TDZ | kg | CDI(1) | ||||
| C3 ADI 10 | 32.00 | 50.00 | 20.0 | 10.00 | 36.00 | M6 | 0.30 | 0 | SR M6X10 DIN1835B | HW 3.0 | COOLING TUBE C3 | WRENCH COOL TUBE C3 |
| C3 ADI 12 | 32.00 | 50.00 | 21.5 | 12.00 | 36.00 | M8 | 0.30 | 0 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C3 | WRENCH COOL TUBE C3 |
| C3 ADI 16 | 32.00 | 50.00 | 29.5 | 16.00 | 36.00 | M8 | 0.30 | 0 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C3 | WRENCH COOL TUBE C3 |
| C4 ADI 10 | 40.00 | 50.00 | 20.0 | 10.00 | 36.00 | M6 | 0.47 | 1 | SR M6X10 DIN1835B | HW 3.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C4 ADI 12 | 40.00 | 50.00 | 24.0 | 12.00 | 36.00 | M8 | 0.46 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C4 ADI 16 | 40.00 | 50.00 | 32.0 | 16.00 | 36.00 | M8 | 0.43 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C4 ADI 20 | 40.00 | 60.00 | 40.0 | 20.00 | 36.00 | M10 | 0.47 | 1 | SR M10X12 DIN1835-B | HW 5.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C4 ADI 25 | 40.00 | 70.00 | 45.0 | 25.00 | 54.00 | M12 | 0.97 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C5 ADI 10 | 50.00 | 60.00 | 26.0 | 10.00 | 36.00 | M6 | 0.73 | 1 | SR M6X10 DIN1835B | HW 3.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C5 ADI 12 | 50.00 | 60.00 | 26.0 | 12.00 | 36.00 | M8 | 0.72 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C5 ADI 16 | 50.00 | 60.00 | 32.0 | 16.00 | 36.00 | M8 | 0.69 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C5 ADI 20 | 50.00 | 60.00 | 40.0 | 20.00 | 36.00 | M10 | 0.69 | 1 | SR M10X12 DIN1835-B | HW 5.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C5 ADI 25 | 50.00 | 70.00 | 50.0 | 25.00 | 54.00 | M12 | 1.11 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C5 ADI 32 | 50.00 | 100.00 | 76.0 | 32.00 | 68.00 | M12 | 2.15 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C6 ADI 12 | 63.00 | 65.00 | 36.0 | 12.00 | 36.00 | M8 | 1.07 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 16 | 63.00 | 65.00 | 36.0 | 16.00 | 36.00 | M8 | 1.05 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 20 | 63.00 | 65.00 | 40.0 | 20.00 | 36.00 | M10 | 1.00 | 1 | SR M10X12 DIN1835-B | HW 5.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 25 | 63.00 | 76.00 | 51.0 | 25.00 | 54.00 | M12 | 0.80 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 32 | 63.00 | 100.00 | 76.0 | 32.00 | 68.00 | M12 | 2.44 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 40 | 63.00 | 100.00 | 76.0 | 40.00 | 98.00 | M12 | 4.47 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ADI 50 | 63.00 | 115.00 | 76.0 | 50.00 | 98.00 | M12 | 4.80 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C8 ADI 12 | 80.00 | 70.00 | 36.0 | 12.00 | 36.00 | M8 | 2.05 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 16 | 80.00 | 70.00 | 36.0 | 16.00 | 36.00 | M8 | 2.00 | 1 | SR M8X10 DIN1835-B | HW 4.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 20 | 80.00 | 70.00 | 40.0 | 20.00 | 36.00 | M10 | 1.98 | 1 | SR M10X12 DIN1835-B | HW 5.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 25 | 80.00 | 80.00 | 51.0 | 25.00 | 54.00 | M12 | 2.43 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 32 | 80.00 | 110.00 | 86.0 | 32.00 | 68.00 | M12 | 3.44 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 40 | 80.00 | 115.00 | 86.0 | 40.00 | 98.00 | M12 | 5.81 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ADI 50 | 80.00 | 115.00 | 86.0 | 50.00 | 98.00 | M12 | 5.36 | 1 | SR M12X16 DIN1835-B | HW 6.0 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
- Use the tools with "AD" suffix
- Regular tools should be shortened
(1) 1 - Hole for data chip, 0 - Without hole for data chip * Optional, should be ordered separately
C#-ABB
Adapters with CAMFIX
Exchangeable Shanks for Boring
Bars with Reduction Sleeves
LSCWS CAMFIX M12 (typ.4) Bar Max
DCONMS DCONWS BD
LPR
| Designation | DCONMS | DCONWS | BD | LPR | LSCWS | CDI(2) |
| C4 ABB 25-60 | 40.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C5 ABB-25-60 | 50.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C6 ABB-25-60 | 63.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C6 ABB-40-70 | 63.00 | 40.00 | 75.00 | 105.00 | 71.0 | 1 |
| C6ABB-25-60C(1) | 63.00 | 25.00 | 63.00 | 95.00 | 60.0 | 1 |
| C6ABB-40-70C(1) | 63.00 | 40.00 | 75.00 | 105.00 | 71.0 | 1 |
| C8 ABB 25-60 | 80.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C8 ABB 40-72 | 80.00 | 40.00 | 75.00 | 105.00 | 71.0 | 1 |
- For SC reduction sleeves, see page 739
(1) Different coolant outlet position and number of screws (2) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | |||||||
| C4 ABB 25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 COOLING TUBE C4 | WRENCH COOL TUBE C4 |
| C5 ABB-25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C6 ABB-25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ABB-40-70 | SR M12X16 DIN1835-B(a) | SR M12X30 DIN915(b) | SR M10X6DIN913(c) | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 | |
| C8 ABB 25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 COOLING TUBE C8 | WRENCH COOL TUBE C8 |
| C8 ABB 40-72 | SR M12X16 DIN1835-B(a) | SR M12X30 DIN915(b) | SR M10X6DIN913(c) | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 COOLING TUBE C8 | WRENCH COOL TUBE C8 |
(a) Used on A-type sleeves (b) Used on B-type sleeves (c) Rear stopper screw
