| | | | | | C | | | | | | |

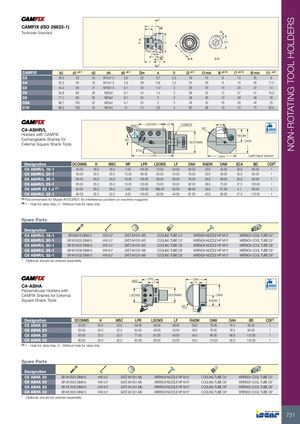

| CAMFIX (ISO 26 Toolholder Standard | 623-1) | | | | | l7 l8 A A C d4 d2 l2 l3 l6 l11 l1 d5 d1 | A-A b2 | | C-C Dm 2e | | | |
| CAMFIX | b2 | d1±0.1 | d2 | d4 | d5±0.1 | Dm e | l1 l2±0.1 | l3 min | l6±0.15 | l7±0.15 | l8 min | l11±0.1 |
| C3 | 28,3 | 32 | 15 | M12x1.5 | 3,6 | 22 0,7 | 2,5 19 | 15 | 6 | 13 | 25 | 8 |
| C4 | 35,3 | 40 | 18 | M14x1.5 | 4,6 | 28 0,9 | 2,5 24 | 20 | 8 | 15 | 30 | 11,5 |
| C5 | 44,4 | 50 | 21 | M16x1.5 | 6,1 | 35 1,12 | 3 30 | 20 | 10 | 20 | 37 | 14 |
| C6 | 55,8 | 63 | 28 | M20x2 | 8,1 | 44 1,4 | 3 38 | 22 | 12 | 27 | 47 | 15,5 |
| C8 | 71,1 | 80 | 32 | M20x2 | 9,1 | 55 2 | 3 48 | 30 | 12 | 28 | 48 | 25 |
| C8X | 88,7 | 100 | 32 | M20x2 | 9,1 | 55 2 | 3 48 | 32 | 16 | 28 | 48 | 25 |
| C10 | 88,3 | 100 | 43 | M24x2 | 12 | 72 2,8 | 3 60 | 36 | 16 | 40 | 70 | 26,5 |
| C#-ASHR/L Holders with CAMFIX Exchangeable Shanks for External Square Shank Tools | | | | WS WF | ECA LS C | CWS | LF | CAMFIX DCON | BD MS | H | RADW | OAW | Bar Max |
| | | | | | LPR | | | | OAH | | Left-hand | shown |
| Designation | DCONMS | H | WSC | WF | LPR | LSCWS | LF | OAH | RADW | OAW | ECA | BD | CDI(2) |
| C4 ASHR/L 16-1 | 40.00 | 16.0 | 16.0 | 7.00 | 104.00 | 70.00 | 34.00 | 50.00 | 23.0 | 43.50 | 30.0 | 60.00 | 1 |
| C5 ASHR/L 20-1 | 50.00 | 20.0 | 20.0 | 10.00 | 98.00 | 63.50 | 24.50 | 78.00 | 30.0 | 59.00 | 30.0 | 90.00 | 1 |
| C6 ASHR/L 20-1 | 63.00 | 20.0 | 20.0 | 10.00 | 100.00 | 63.50 | 26.50 | 78.00 | 30.0 | 59.00 | 30.0 | 90.00 | 1 |
| C6 ASHR/L 25-1 | 63.00 | 25.0 | 25.0 | 13.00 | 120.00 | 70.00 | 30.00 | 82.00 | 38.0 | 70.00 | 27.0 | 100.00 | 1 |
| C6 ASHR 25 1-J(1) | 63.00 | 25.0 | 25.0 | 4.50 | 120.00 | 999.00 | 82.00 | 86.50 | 29.5 | 61.00 | 4.1 | 90.00 | 1 |
| C8 ASHR/L 32-1 | 80.00 | 32.0 | 32.0 | 8.00 | 140.00 | 90.00 | 40.00 | 87.00 | 40.0 | 80.00 | 27.0 | 110.00 | 1 |
(1) Recommended for Mazak INTEGREX! No interference problem on machine magazine (2) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | | | | | | |
| C4 ASHR/L 16-1 | SR M8X16 DIN915 | HW 5.0 | SATZ-M10X1-M5 | COOLING TUBE C4 | WRENCH NOZZLE HP M10 | WRENCH COOL TUBE C4 |
| C5 ASHR/L 20-1 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | COOLING TUBE C5 | WRENCH NOZZLE HP M10 | WRENCH COOL TUBE C5 |
| C6 ASHR/L 20-1 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | COOLING TUBE C6 | WRENCH NOZZLE HP M10 | WRENCH COOL TUBE C6 |
| C6 ASHR/L 25-1 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | COOLING TUBE C6 | WRENCH NOZZLE HP M12 | WRENCH COOL TUBE C6 |
| C8 ASHR/L 32-1 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | COOLING TUBE C8 | WRENCH NOZZLE HP M12 | WRENCH COOL TUBE C8 |
* Optional, should be ordered separately
| C#-ASHA | | | | WSC | LPR LF | | OAH H | | | | Bar Max |
| Perpendicular Holders with CAMFIX Shanks for External Square Shank Tools | | | | LSCWS | | DCONMS BD | | RADW OAW | | | |
| Designation | DCONMS | H | WSC | LPR | LSCWS | LF | RADW | OAW | OAH | BD | CDI(1) |
| C5 ASHA 20 | 50.00 | 20.0 | 20.0 | 58.00 | 46.00 | 38.00 | 38.0 | 76.00 | 76.5 | 90.00 | 1 |
| C6 ASHA 20 | 63.00 | 20.0 | 20.0 | 60.00 | 46.00 | 40.00 | 38.0 | 76.00 | 76.5 | 90.00 | 1 |
| C6 ASHA 25 | 63.00 | 25.0 | 25.0 | 71.00 | 61.00 | 46.00 | 45.0 | 90.00 | 86.6 | 110.00 | 1 |
| C8 ASHA 32 | 80.00 | 32.0 | 32.0 | 85.00 | 80.00 | 53.00 | 55.0 | 110.00 | 95.0 | 142.00 | 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | | | | | | |
| C5 ASHA 20 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 | COOLING TUBE C5 | WRENCH COOL TUBE C5 |
| C6 ASHA 20 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C6 ASHA 25 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 | COOLING TUBE C6 | WRENCH COOL TUBE C6 |
| C8 ASHA 32 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 | COOLING TUBE C8 | WRENCH COOL TUBE C8 |
