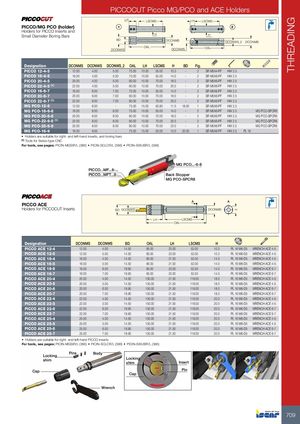

PICCOCUT Picco MG/PCO and ACE Holders
| L | H | LS | CMS | LH | LSCMS | ||||||
| PICCO/MG PCO (holder) Holders for PICCO Inserts and | 1 | 2 | |||||||||
| Small Diameter Boring Bars | BD DCONWS | OAL | H | DCONMS DCON | WS | H OAL | DCONWS | DCONMS 2 | |||
| Designation DCONMS | DCONWS | DCONWS2 | OAL | LH | LSCMS | H | BD Fig. | ||||
| PICCO 12-4-5 12.00 | 4.00 | 5.00 | 75.00 | 10.00 | 55.00 | 10.3 | - 2 | SR M5X4-PF | HW 2.5 | ||
| PICCO 16-4-5 16.00 | 4.00 | 5.00 | 75.00 | 10.00 | 55.00 | 14.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| PICCO 20-4-5 20.00 | 4.00 | 5.00 | 90.00 | 10.00 | 70.00 | 18.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| PICCO 22-4-5(1) 22.00 | 4.00 | 5.00 | 90.00 | 10.00 | 70.00 | 20.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| PICCO 16-6-7 16.00 | 6.00 | 7.00 | 75.00 | 10.00 | 55.00 | 14.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| PICCO 20-6-7 20.00 | 6.00 | 7.00 | 90.00 | 10.00 | 70.00 | 18.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| PICCO 22-6-7(1) 22.00 | 6.00 | 7.00 | 90.00 | 10.00 | 70.00 | 20.0 | - 2 | SR M5X6-PF | HW 2.5 | ||
| MG PCO-12-6 12.00 | 6.00 | - | 75.00 | 15.00 | 50.80 | 11.0 | 18.00 1 | SR M5X6-PF | HW 2.5 | ||
| MG PCO-16-6-8 16.00 | 6.00 | 8.00 | 75.00 | 10.00 | 55.00 | 14.0 | - 2 | SR M5X6-PF | HW 2.5 | M | G PCO-SPCR8 |
| MG PCO-20-6-8 20.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 18.0 | - 2 | SR M5X6-PF | HW 2.5 | M | G PCO-SPCR8 |
| MG PCO-22-6-8(1) 22.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 20.0 | - 2 | SR M5X6-PF | HW 2.5 | M | G PCO-SPCR8 |
| MG PCO-25-6-8 25.00 | 6.00 | 8.00 | 90.00 | 10.00 | 70.00 | 23.0 | - 2 | SR M5X6-PF | HW 2.5 | M | G PCO-SPCR8 |
| MG PCO-16-9 16.00 | 9.00 | - | 75.00 | 15.00 | 53.00 | 15.0 | 20.00 1 | SR M5X6-PF | HW 2.5 | PL 16 |
- Holders are suitable for right- and left-hand inserts, and boring bars
(1) Tools for Swiss-type CNC
For tools, see pages: PICIN-MGSIR/L (386) PICIN-SCLCR/L (386) PICIN-SWUBR/L (386)
MG PCO...-6-8 PICCO...MF...8-... PICCO...MFT...8-... Back Stopper MG PCO-SPCR8
PICCO ACE A A
Holders for PICCOCUT Inserts BD DCONWS DCONMS H
LH LSCMS OAL
| Designation | DCONMS | DCONWS | BD | OAL | LH | LSCMS | H | ||
| PICCO ACE 12-4 | 12.00 | 4.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 12-5 | 12.00 | 5.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-4 | 16.00 | 4.00 | 14.50 | 85.00 | 21.50 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-5 | 16.00 | 5.00 | 14.50 | 85.00 | 21.50 | 53.00 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-6 | 16.00 | 6.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 16-7 | 16.00 | 7.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-4 | 20.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-5 | 20.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-6 | 20.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-7 | 20.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-4 | 22.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-5 | 22.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-6 | 22.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-7 | 22.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-4 | 25.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-5 | 25.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-6 | 25.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-7 | 25.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
- Holders are suitable for right- and left-hand PICCO inserts
For tools, see pages: PICIN-MGSIR/L (386) PICIN-SCLCR/L (386) PICIN-SWUBR/L (386) Pins Body Locking shim Locking shim Insert Cap Pin Cap
Wrench
