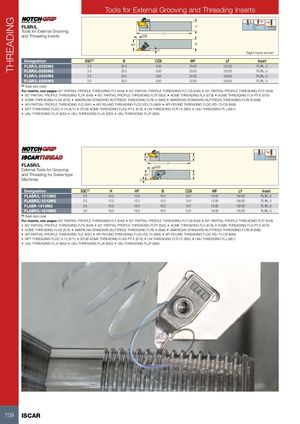

Tools for External Grooving and Threading Inserts
| FLSR/L Tl f Etl Gi | H | ||||
| oos or xerna roovng and Threading Inserts | LF CDX | ||||
| WF 3° | B | Right-hand shown | |||
| Designation | SSC(1) | B CDX | WF | LF | Insert |
| FLSR/L-2020M2 | 2.0 | 20.0 3.00 | 25.00 | 125.00 | FL/IN-2 |
| FLSR/L-2020M3 | 3.0 | 20.0 5.00 | 25.00 | 125.00 | FL/IN-3 |
| FLSR/L-2525M2 | 2.0 | 25.0 3.00 | 32.00 | 150.00 | FL/IN-2 |
| FLSR/L-2525M3 | 3.0 | 25.0 5.00 | 32.00 | 150.00 | FL/IN-3 |
(1) Seat size code
For inserts, see pages: 60° PARTIAL PROFILE THREADING FLT (649) 60° PARTIAL PROFILE THREADING FLT-CB (649) 60° PARTIAL PROFILE THREADING FLTF (648)
- 60° PARTIAL PROFILE THREADING FLTK (649)
- 60° PARTIAL PROFILE THREADING FLTP (650)
- ACME THREADING FLA (678)
- ACME THREADING FLA-PT-E (679)
- ACME THREADING FLAS (678)
- AMERICAN STANDARD BUTTRESS THREADING FLTB-A (688)
- AMERICAN STANDARD BUTTRESS THREADING FLTB-B (688)
- API PARTIAL PROFILE THREADING FLD (691)
- API ROUND THREADING FLDC-RD-75 (689)
- API ROUND THREADING FLDC-RD-75-CB (689)
- NPT THREADING FLDC-V-75 (671)
- STUB ACME THREADING FLAS-PT-E (676)
- UN THREADING FLTC-E (665)
- UNJ THREADING FLJ (681)
- UNJ THREADING FLJF (682)
- UNJ THREADING FLJK (682)
- UNJ THREADING FLJP (682)
| HF | H | ||||||
| FLASR/L External Tools for Grooving and Threading for Swiss-type Machines | WF LF CDX 3˚ | B | |||||
| Designation | SSC(1) | H | HF B | CDX | WF | LF | Insert |
| FLASR/L-1010M2 | 2.0 | 10.0 | 10.0 10.0 | 3.51 | 10.00 | 150.00 | FL/IN-2 |
| FLASR/L-1212M2 | 2.0 | 12.0 | 12.0 12.0 | 3.51 | 12.00 | 150.00 | FL/IN-2 |
| FLASR-1616M2 | 2.0 | 16.0 | 16.0 16.0 | 3.51 | 16.00 | 150.00 | FL/IN-2 |
| FLASR/L-1616M3 | 3.0 | 16.0 | 16.0 16.0 | 5.31 | 16.00 | 125.00 | FL/IN-3 |
(1) Seat size code
For inserts, see pages: 60° PARTIAL PROFILE THREADING FLT (649) 60° PARTIAL PROFILE THREADING FLT-CB (649) 60° PARTIAL PROFILE THREADING FLTF (648)
- 60° PARTIAL PROFILE THREADING FLTK (649)
- 60° PARTIAL PROFILE THREADING FLTP (650)
- ACME THREADING FLA (678)
- ACME THREADING FLA-PT-E (679)
- ACME THREADING FLAS (678)
- AMERICAN STANDARD BUTTRESS THREADING FLTB-A (688)
- AMERICAN STANDARD BUTTRESS THREADING FLTB-B (688)
- API PARTIAL PROFILE THREADING FLD (691)
- API ROUND THREADING FLDC-RD-75 (689)
- API ROUND THREADING FLDC-RD-75-CB (689)
- NPT THREADING FLDC-V-75 (671)
- STUB ACME THREADING FLAS-PT-E (676)
- UN THREADING FLTC-E (665)
- UNJ THREADING FLJ (681)
- UNJ THREADING FLJF (682)
- UNJ THREADING FLJK (682)
- UNJ THREADING FLJP (682)
