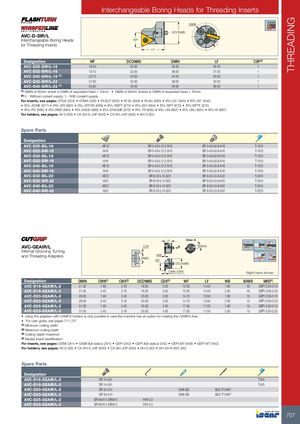

Interchangeable Boring Heads for Threading Inserts
| AVC-D-SIR/L Interchangeable Boring Heads for Threading Inserts | WF | LF | DCONMS | DMIN | ||
| Designation | WF | DCONMS | DMIN | LF | CSP(2) | |
| AVC-D25-SIR/L-16 | 16.20 | 25.00 | 29.00 | 26.00 | 1 | |
| AVC-D32-SIR/L-16 | 19.70 | 32.00 | 36.00 | 27.00 | 1 | |
| AVC-D40-SIR/L-16(1) | 23.70 | 40.00 | 44.00 | 30.00 | 1 | |
| AVC-D32-SIR/L-22 | 21.60 | 32.00 | 38.00 | 32.00 | 1 | |
| AVC-D40-SIR/L-22(1) | 25.60 | 40.00 | 46.00 | 38.00 | 1 |
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: GTGA (325) GTMA (326) IR-BUT (692) IR-EL (693) IR-MJ (683) IR/L-55° (640) IR/L-60° (645)
- IR/L-ACME (677)
- IR/L-API (690)
- IR/L-API RD (689)
- IR/L-BSPT (673)
- IR/L-ISO (655)
- IR/L-NPT (670)
- IR/L-NPTF (672)
- IR/L-PG (686)
- IR/L-RND (694)
- IR/L-SAGE (686)
- IR/L-STACME (675)
- IR/L-TR (685)
- IR/L-UN (662)
- IR/L-UNJ (681)
- IR/L-W (667)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92)
Spare Parts
| Designation | ||||
| AVC-D25-SIL-16 | AE16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D25-SIR-16 | AI16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D32-SIL-16 | AE16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D32-SIR-16 | AI16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D40-SIL-16 | AE16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D40-SIR-16 | AI16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | T-10/5 |
| AVC-D32-SIL-22 | AE22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | T-20/5 |
| AVC-D32-SIR-22 | AI22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | T-20/5 |
| AVC-D40-SIL-22 | AE22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | T-20/5 |
| AVC-D40-SIR-22 | AI22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | T-20/5 |
| AVC-GEAIR/L Internal Grooving Turning and Threading Adapters | DMIN CDX | D CWN- WF LF WB | CO CW A | NMS View A X | BAWS | Right-hand shown | ||||
| Designation | DMIN | CWN(1) | CWX(2) | DCONMS | CDX(3) | WF | LF | WB | BAWS MIID(4) | |
| AVC-D16-GEAIR/L-2 | 21.00 | 1.90 | 2.40 | 16.00 | 3.00 | 12.00 | 14.50 | 1.60 | 45 GEPI 2.00-0.10 | |
| AVC-D16-GEAIR/L-3 | 21.00 | 2.40 | 2.70 | 16.00 | 3.00 | 12.00 | 14.50 | 2.00 | 45 GEPI 3.00-0.20 | |
| AVC-D20-GEAIR/L-2 | 26.00 | 1.90 | 2.40 | 20.00 | 3.00 | 14.70 | 13.50 | 1.60 | 15 GEPI 2.00-0.10 | |
| AVC-D20-GEAIR/L-3 | 26.00 | 2.40 | 3.18 | 20.00 | 3.00 | 14.70 | 13.50 | 2.00 | 15 GEPI 3.00-0.20 | |
| AVC-D25-GEAIR/L-2 | 31.00 | 1.90 | 2.40 | 25.00 | 4.00 | 17.50 | 17.50 | 1.60 | 15 GEPI 2.00-0.10 | |
| AVC-D25-GEAIR/L-3 | 31.00 | 2.40 | 3.18 | 25.00 | 4.00 | 17.50 | 17.50 | 2.00 | 15 GEPI 3.00-0.20 |
- Using the adapters with CAMFIX holders is only possible in case the machine has an option for rotating the CAMFIX Axis.
- For user guide, see pages 711-727
(1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Master insert identification
For inserts, see pages: GEMI (341) GEMI (full radius) (341) GEPI (342) GEPI (full radius) (342) GEPI-MT (648) GEPI-WT (642)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
Spare Parts
| Designation | |||||
| AVC-D16-GEAIR/L-2 | SR 14-551 | T-9/5 | |||
| AVC-D16-GEAIR/L-3 | SR 14-551 | T-9/5 | |||
| AVC-D20-GEAIR/L-2 | SR 34-510 | SW6-SD | BLD T15/M7 | ||
| AVC-D20-GEAIR/L-3 | SR 34-510 | SW6-SD | BLD T15/M7 | ||
| AVC-D25-GEAIR/L-2 | SR M4X14 DIN912 | HW 3.0 | |||
| AVC-D25-GEAIR/L-3 | SR M4X14 DIN912 | HW 3.0 |
