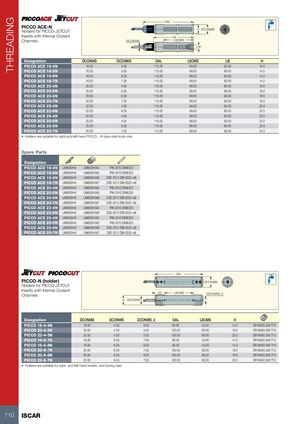

| PICCO ACE-N Holders for PICCO-JETCUT Inserts with Internal Coolant Channels | DCONMS H 1/8" OAL LSCMS LB DCONWS | |||
| Designation | DCONMS | DCONWS OAL LSCMS | LB | H |
| PICCO ACE 16-4N | 16.00 | 4.05 115.00 68.00 | 90.00 | 14.0 |
| PICCO ACE 16-5N | 16.00 | 5.05 115.00 68.00 | 90.00 | 14.0 |
| PICCO ACE 16-6N | 16.00 | 6.05 115.00 68.00 | 90.00 | 14.0 |
| PICCO ACE 16-7N | 16.00 | 7.05 115.00 68.00 | 90.00 | 14.0 |
| PICCO ACE 20-4N | 20.00 | 4.05 115.00 68.00 | 90.00 | 18.0 |
| PICCO ACE 20-5N | 20.00 | 5.05 115.00 68.00 | 90.00 | 18.0 |
| PICCO ACE 20-6N | 20.00 | 6.05 115.00 68.00 | 90.00 | 18.0 |
| PICCO ACE 20-7N | 20.00 | 7.05 115.00 68.00 | 90.00 | 18.0 |
| PICCO ACE 22-4N | 22.00 | 4.05 115.00 68.00 | 90.00 | 20.0 |
| PICCO ACE 22-6N | 22.00 | 6.05 115.00 68.00 | 90.00 | 20.0 |
| PICCO ACE 25-4N | 25.00 | 4.05 115.00 68.00 | 90.00 | 23.0 |
| PICCO ACE 25-5N | 25.00 | 5.05 115.00 68.00 | 90.00 | 23.0 |
| PICCO ACE 25-6N | 25.00 | 6.05 115.00 68.00 | 90.00 | 23.0 |
| PICCO ACE 25-7N | 25.00 | 7.05 115.00 68.00 | 90.00 | 23.0 |
- Holders are suitable for right and left-hand PICCO...-N type solid tools only
Spare Parts
| Designation | |||
| PICCO ACE 16-4N | UM600H.K | UM600H.M4 | PIN 2X10 DIN6325 |
| PICCO ACE 16-5N | UM600H.K | UM600H.M5 | PIN 2X10 DIN6325 |
| PICCO ACE 16-6N | UM600H.K | UM600H.M6 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 16-7N | UM600H.K | UM600H.M7 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 20-4N | UM600H.K | UM600H.M4 | PIN 2X10 DIN6325 |
| PICCO ACE 20-5N | UM600H.K | UM600H.M5 | PIN 2X10 DIN6325 |
| PICCO ACE 20-6N | UM600H.K | UM600H.M6 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 20-7N | UM600H.K | UM600H.M7 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 22-4N | UM600H.K | UM600H.M4 | PIN 2X10 DIN6325 |
| PICCO ACE 22-6N | UM600H.K | UM600H.M6 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 25-4N | UM600H.K | UM600H.M4 | PIN 2X10 DIN6325 |
| PICCO ACE 25-5N | UM600H.K | UM600H.M5 | PIN 2X10 DIN6325 |
| PICCO ACE 25-6N | UM600H.K | UM600H.M6 | ZAD 2X12 DIN 6325 m6 |
| PICCO ACE 25-7N | UM600H.K | UM600H.M7 | ZAD 2X12 DIN 6325 m6 |
| OAL | |||||
| PICCO-N (holder) Holders for PICCO-JETCUT Inserts with Internal Coolant Channels | LSCMS 20 DCONWS H | DCONWS DCONMS | 2 | ||
| Designation | DCONMS | DCONWS DCONWS2 OAL | LSCMS | H | |
| PICCO 16-4-5N | 16.00 | 4.05 5.05 85.00 | 45.00 | 14.0 | SR M5X0.5X6 T10 |
| PICCO 20-4-5N | 20.00 | 4.05 5.05 100.00 | 60.00 | 18.0 | SR M5X0.5X8 T10 |
| PICCO 22-4-5N | 22.00 | 4.05 5.05 100.00 | 60.00 | 20.0 | SR M5X0.5X8 T10 |
| PICCO 16-6-7N | 16.00 | 6.05 7.05 85.00 | 45.00 | 14.0 | SR M5X0.5X6 T10 |
| PICCO 16-6-8N | 16.00 | 6.05 8.00 85.00 | 45.00 | 14.0 | SR M5X0.5X6 T10 |
| PICCO 20-6-7N | 20.00 | 6.05 7.05 100.00 | 60.00 | 18.0 | SR M5X0.5X8 T10 |
| PICCO 20-6-8N | 20.00 | 6.05 8.00 100.00 | 60.00 | 18.0 | SR M5X0.5X8 T10 |
| PICCO 22-6-7N | 22.00 | 6.05 7.05 100.00 | 60.00 | 20.0 | SR M5X0.5X8 T10 |
- Holders are suitable for right- and left-hand inserts, and boring bars
