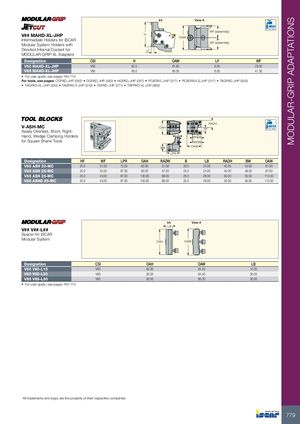

MODULAR-GRIP ADAPTATIONS A View A 150 Bar Max WF (assembly) V## MAHD-XL-JHP H OAW Intermediate Holders for ISCAR Modular System Holders with WF (assembly) Directed Internal Coolant for LF MODULAR-GRIP-XL Adapters Designation CSI H OAW LF WF V60 MAHD-XL-JHP V60 62.0 61.60 6.05 29.50 V85 MAHD-XL-JHP V85 85.0 85.00 6.05 41.30 • For user guide, see pages 760-774 For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569) RADH V-ASH-MCAxially Oriented, Short, Right- OAH HF 80 Bar Max Hand, Wedge Clamping Holders LB WF B for Square Shank Tools RADW BW OAW LPR Designation HF WF LPR OAH RADW B LB RADH BW OAW V60 ASH 20-MC 20.0 31.00 72.00 80.00 51.00 20.0 24.00 40.00 43.00 81.00 V60 ASH 25-MC 25.0 32.00 87.00 90.00 57.00 25.0 24.00 45.00 48.00 87.00 V85 ASH 25-MC 25.0 43.00 87.00 100.00 68.00 25.0 26.00 50.00 55.00 110.50 V85 ASHD 25-MC 25.0 43.00 87.00 100.00 68.00 25.0 26.00 50.00 55.00 110.50 A View A LB V## V##-L## Spacer for ISCAR Modular System OAH OAW Designation CSI OAH OAW LB V60 V60-L15 V60 62.00 64.50 15.00 V60 V60-L30 V60 62.00 64.50 30.00 V85 V85-L30 V85 83.00 85.00 30.00 • For user guide, see pages 760-774 All trademarks and logos are the property of their respective companies 779
