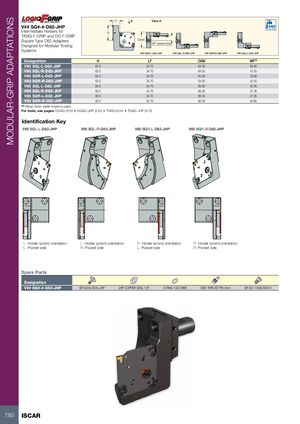

MODULAR-GRIP ADAPTATIONS LF A View A V## SQ#-#-D82-JHP Bar Max Intermediate Holders for H TANG-F-GRIP and DO-F-GRIP Square Type D82 Adapters OAW Designed for Modular Tooling WF (assembly) Systems V## SQR-L D82-JHP V## SQL-R D82-JHP V## SQR-R D82-JHP V## SQL-L D82-JHP Designation H LF OAW WF(1) V60 SQL-L-D82-JHP 62.0 34.70 64.50 28.95 V60 SQL-R-D82-JHP 62.0 34.70 64.50 15.35 V60 SQR-L-D82-JHP 62.0 34.70 64.50 18.85 V60 SQR-R-D82-JHP 62.0 34.70 64.50 32.45 V85 SQL-L-D82-JHP 83.0 34.70 85.00 40.95 V85 SQL-R-D82-JHP 83.0 34.70 85.00 27.35 V85 SQR-L-D82-JHP 83.0 34.70 85.00 27.35 V85 SQR-R-D82-JHP 83.0 34.70 85.00 40.95 (1) When 3mm width insert is used. For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513) Identification Key V60 SQL-L-D82-JHP V60 SQL-R-D82-JHP V60 SQR-L-D82-JHP V60 SQR-R-D82-JHP L- Holder (prism) orientation L- Holder (prism) orientation R- Holder (prism) orientation R- Holder (prism) orientation L- Pocket side R- Pocket side L- Pocket side R- Pocket side Spare Parts Designation V## SQ#-#-D82-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" O-RING 10X2 NBR SIDE THRUST PIN 3mm SR ISO 14580 M4X10 780 ISCAR
