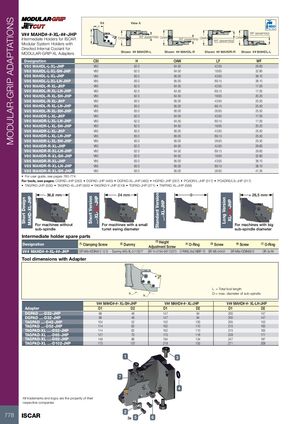

Каталог Iscar державки и пластины для нарезания резьбы 2022 - страница 144

MODULAR-GRIP ADAPTATIONS Short Design MAHD-XL-JHP Short Version ...-XL-SH-JHP Standard Version ...-XL-JHP Long Version XL-LH-JHP A View A LF 150 Bar Max V## MAHD#-#-XL-##-JHP HIntermediate Holders for ISCAR WF (assembly)OAWWF (assembly) OAWWF (assembly) OAWOAWWF (assembly) Modular System Holders with Directed Internal Coolant for MODULAR-GRIP-XL Adapters Shown ## MAHDR-L Shown ## MAHDL-R Shown ## MAHDR-R Shown ## MAHDL-L Designation CSI H OAW LF WF V60 MAHDL-L-XL-JHP V60 62.0 64.50 42.65 29.60 V60 MAHDL-L-XL-SH-JHP V60 62.0 64.50 18.65 32.80 V85 MAHDL-L-XL-JHP V85 83.0 85.00 43.65 38.10 V85 MAHDL-L-XL-LH-JHP V85 83.0 85.00 69.15 38.10 V60 MAHDL-R-XL-JHP V60 62.0 64.50 42.65 17.00 V60 MAHDL-R-XL-LH-JHP V60 62.0 64.50 69.15 17.00 V60 MAHDL-R-XL-SH-JHP V60 62.0 64.50 18.65 20.20 V85 MAHDL-R-XL-JHP V85 83.0 85.00 43.65 25.50 V85 MAHDL-R-XL-LH-JHP V85 83.0 85.00 69.15 25.50 V85 MAHDL-R-XL-SH-JHP V85 83.0 85.00 26.65 25.50 V60 MAHDR-L-XL-JHP V60 62.0 64.50 42.65 17.00 V60 MAHDR-L-XL-LH-JHP V60 62.0 64.50 69.15 17.00 V60 MAHDR-L-XL-SH-JHP V60 62.0 64.50 18.65 20.20 V85 MAHDR-L-XL-JHP V85 83.0 85.00 43.65 25.50 V85 MAHDR-L-XL-LH-JHP V85 83.0 85.00 69.15 25.50 V85 MAHDR-L-XL-SH-JHP V85 83.0 85.00 26.65 25.50 V60 MAHDR-R-XL-JHP V60 62.0 64.50 42.65 29.60 V60 MAHDR-R-XL-LH-JHP V60 62.0 64.50 69.15 29.60 V60 MAHDR-R-XL-SH-JHP V60 62.0 64.50 18.65 32.80 V85 MAHDR-R-XL-JHP V85 83.0 85.00 43.65 38.10 V85 MAHDR-R-XL-LH-JHP V85 83.0 85.00 69.15 38.10 V85 MAHDR-R-XL-SH-JHP V85 83.0 85.00 26.65 41.30 • For user guide, see pages 760-774 For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569) - 36,6 mm - 24 mm 0 + 26,5 mm 46 For machines without For machines1 with a small For machines with big sub-spindle turret swing diameter sub-spindle diameter h 43 Intermediate holder spare parts Designation (1) Clamping Screw 1(2) Dummy (3) HeightAdjustment Screw (4) O-Ring (5) Screw (6) Screw (7) O-Ring V## MAHD#-#-XL-##-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR 14-0194-56113373 O RING 8x3 NBR 70 SR M5-04451 SR M6x10DIN6912 OR 5x1N Tool dimensions with Adapter f b L = Total tool length D1 D2 D1= max. diameter of sub-spindle V## MAHD#-#- XL-SH-JHP V## MAHD#-#- XL-JHP V## MAHD#-#- XL-LH-JHP Adapter D1 D2 D1 D2 D1 D2 DGPAD …-D22-JHP 99 46 147 94 200 147 DGPAD …-D32-JHP 99 46 147 94 200 147 TAGPAD …-D42-JHP 104 52 152 100 205 153 TAGPAD …-D52-JHP 114 62 162 110 215 163 TAGPAD-XL …-D52-JHP 114 62 162 110 215 163 TAGPAD-XL …-D65-JHP 127 70 175 118 228 171 TAGPAD-XL …-D82-JHP 146 86 194 134 247 187 TAGPAD-XL …-D102-JHP 170 107 218 155 271 208 1 3 7 4 All trademarks and logos are the property of their respective companies 778 ISCAR 2 3x 5 6
