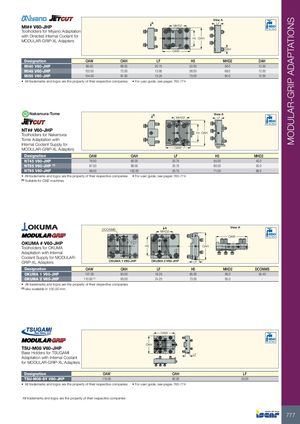

MODULAR-GRIP ADAPTATIONS View A A LF MI## V60-JHP MHD2 150 Bar Max Toolholders for Miyano Adaptation with Directed Internal Coolant for H5 OAH MODULAR-GRIP-XL Adapters OAW DAH Designation OAW OAH LF H5 MHD2 DAH MI40 V60-JHP 89.00 68.00 20.75 52.00 56.0 12.00 MI45 V60-JHP 102.00 72.00 13.95 56.00 68.0 12.00 MI55 V60-JHP 104.00 91.00 15.25 75.00 60.0 12.00 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 Nakamura-Tome A View A MHD2 LF 150 Bar Max NT## V60-JHP Toolholders for Nakamura- H5 OAH Tome Adaptation with Internal Coolant Supply for MODULAR-GRIP-XL Adapters OAW Designation OAW OAH LF H5 MHD2 NT45 V60-JHP 76.50 80.00 20.75 55.00 40.0 NT55 V60-JHP (1) 87.50 86.00 20.75 60.00 50.0 NT65 V60-JHP 99.50 100.00 20.75 71.00 69.0 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 (1) Suitable for CMZ machines DCONMS AMHD2 View A 150 OAW Bar Max OKUMA # V60-JHP Toolholders for OKUMA H5 OAH Adaptation with Internal Coolant Supply for MODULAR- GRIP-XL Adapters OKUMA 1 V60-JHP OKUMA 2 V60-JHP LF Designation OAW OAH LF H5 MHD2 DCONMS OKUMA 1 V60-JHP 107.00 85.00 19.25 65.00 80.0 55.40 OKUMA 2 V60-JHP 110.00 (1) 95.00 24.25 73.00 65.0 - • All trademarks and logos are the property of their respective companies (1) also available in 100.00 mm OAW 150 Bar Max OAH TSU-M08 V60-JHP Base Holders for TSUGAMI LF Adaptation with Internal Coolant for MODULAR-GRIP-XL Adapters Designation OAW OAH LF TSU-M08-SY V60-JHP 110.00 92.00 25.00 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 All trademarks and logos are the property of their respective companies 777
