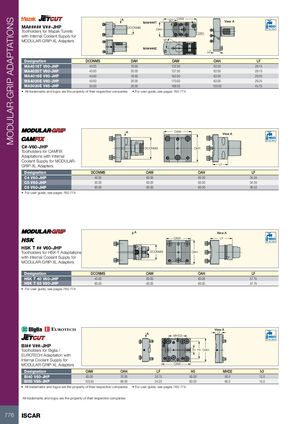

MODULAR-GRIP ADAPTATIONS A MA####T 90˚ OAW View A MA##### V##-JHPToolholders for Mazak Turrets DCONMS OAH DAH 150 Bar Max with Internal Coolant Supply for MODULAR-GRIP-XL Adapters 30˚ MA####E LF Designation DCONMS DAH OAW OAH LF MA4016T V60-JHP 40.00 16.00 132.50 62.00 28.15 MA4020T V60-JHP 40.00 20.00 137.50 62.00 28.15 MA4016E V60-JHP 40.00 16.00 162.50 62.00 29.25 MA4020E V60-JHP 40.00 20.00 170.00 62.00 29.25 MA5020E V85-JHP 50.00 20.00 168.50 100.00 45.75 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 A OAW View A 150 Bar Max C#-V60-JHP DCONMS OAH Toolholders for CAMFIX Adaptations with Internal Coolant Supply for MODULAR- GRIP-XL Adapters LF Designation DCONMS OAW OAH LF C4 V60-JHP 40.00 63.00 63.00 34.55 C5 V60-JHP 50.00 63.00 63.00 34.55 C6 V60-JHP 63.00 63.00 63.00 36.55 • For user guide, see pages 760-774 A View A OAW LF 150 Bar Max HSK T ## V60-JHP Toolholders for HSK-T Adaptations DCONMS OAH with Internal Coolant Supply for MODULAR-GRIP-XL Adapters Designation DCONMS OAW OAH LF HSK T 40 V60-JHP 40.00 63.00 63.00 57.75 HSK T 63 V60-JHP 63.00 63.00 63.00 57.75 • For user guide, see pages 760-774 View A A MHD2 LF 150 Bar Max BI## V##-JHP Toolholders for Biglia / h3 H5 OAH EUROTECH Adaptation with Internal Coolant Supply for MODULAR-GRIP-XL Adapters OAW Designation OAW OAH LF H5 MHD2 h3 BI40 V60-JHP 83.00 70.00 20.75 50.00 50.0 12.0 BI55 V85-JHP 103.50 85.00 24.25 63.00 65.0 15.0 • All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 All trademarks and logos are the property of their respective companies 776 ISCAR
