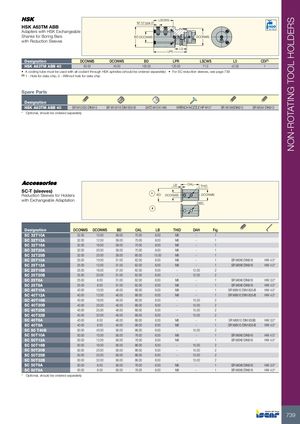

LSCWS M 12 type 2
HSK A63TM ABB
Adapters with HSK Exchangeable Bar Max
| Shanks for Boring Bars | BD DCONWS | DCONMS | ||
| with Reduction Sleeves | ||||
| L5 | ||||
| LPR |
| Designation | DCONMS | DCONWS | BD | LPR | LSCWS | L5 | CDI(1) |
| HSK A63TM ABB 40 | 63.00 | 40.00 | 100.00 | 120.00 | 71.0 | 42.00 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- For SC reduction sleeves, see page 739
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63TM ABB 40 SR M12X30 DIN915 SR M12X16 DIN1835-B SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M10X6DIN913 SR M5X4 DIN913
- Optional, should be ordered separately
SC-T (sleeves)
Reduction Sleeves for Holders
with Exchangeable Adaptation
LB OAL THID
1 BD DCONWS DCONMS
DAH 2
| Designation | DCONMS | DCONWS | BD | OAL | LB | THID | DAH | Fig. | ||
| SC 32T10A | 32.00 | 10.00 | 39.00 | 70.00 | 8.00 | M6 | - | 1 | ||
| SC 32T12A | 32.00 | 12.00 | 39.00 | 70.00 | 8.00 | M6 | - | 1 | ||
| SC 32T16A | 32.00 | 16.00 | 39.00 | 70.00 | 8.00 | M6 | - | 1 | ||
| SC 32T20A | 32.00 | 20.00 | 39.00 | 70.00 | 8.00 | M6 | - | 1 | ||
| SC 32T25B | 32.00 | 25.00 | 39.00 | 80.00 | 15.00 | M8 | - | 1 | ||
| SC 25T10A | 25.00 | 10.00 | 31.00 | 62.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
| SC 25T12A | 25.00 | 12.00 | 31.00 | 62.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
| SC 25T16B | 25.00 | 16.00 | 31.00 | 62.00 | 6.00 | - | 12.00 | 2 | ||
| SC 25T20B | 25.00 | 20.00 | 31.00 | 62.00 | 6.00 | - | 12.00 | 2 | ||
| SC 25T6A | 25.00 | 6.00 | 31.00 | 62.00 | 6.00 | M6 | - | 1 | SR M6X6 DIN916 | HW 3.0 |
| SC 25T8A | 25.00 | 8.00 | 31.00 | 62.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
| SC 40T10A | 40.00 | 10.00 | 46.00 | 66.00 | 6.00 | M8 | - | 1 | SR M8X10 DIN1835-B | HW 4.0 |
| SC 40T12A | 40.00 | 12.00 | 46.00 | 66.00 | 6.00 | M8 | - | 1 | SR M8X10 DIN1835-B | HW 4.0 |
| SC 40T16B | 40.00 | 16.00 | 46.00 | 66.00 | 6.00 | - | 15.00 | 2 | ||
| SC 40T20B | 40.00 | 20.00 | 46.00 | 66.00 | 6.00 | - | 15.00 | 2 | ||
| SC 40T25B | 40.00 | 25.00 | 46.00 | 66.00 | 6.00 | - | 15.00 | 2 | ||
| SC 40T32B | 40.00 | 32.00 | 46.00 | 66.00 | 6.00 | - | 15.00 | 2 | ||
| SC 40T6A | 40.00 | 6.00 | 46.00 | 66.00 | 6.00 | M6 | - | 1 | SR M6X10 DIN1835B | HW 3.0 |
| SC 40T8A | 40.00 | 8.00 | 46.00 | 66.00 | 6.00 | M6 | - | 1 | SR M8X10 DIN1835-B | HW 4.0 |
| SC 50 T40B | 50.00 | 40.00 | 56.00 | 86.00 | 6.00 | - | 15.00 | 2 | ||
| SC 50T10A | 50.00 | 10.00 | 56.00 | 76.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
| SC 50T12A | 50.00 | 12.00 | 56.00 | 76.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
| SC 50T16B | 50.00 | 16.00 | 56.00 | 86.00 | 6.00 | - | 15.00 | 2 | ||
| SC 50T20B | 50.00 | 20.00 | 56.00 | 86.00 | 6.00 | - | 15.00 | 2 | ||
| SC 50T25B | 50.00 | 25.00 | 56.00 | 86.00 | 6.00 | - | 15.00 | 2 | ||
| SC 50T32B | 50.00 | 32.00 | 56.00 | 86.00 | 6.00 | - | 15.00 | 2 | ||
| SC 50T6A | 50.00 | 6.00 | 56.00 | 76.00 | 6.00 | M6 | - | 1 | SR M6X6 DIN916 | HW 3.0 |
| SC 50T8A | 50.00 | 8.00 | 56.00 | 76.00 | 6.00 | M8 | - | 1 | SR M8X6 DIN916 | HW 4.0 |
- Optional, should be ordered separately
