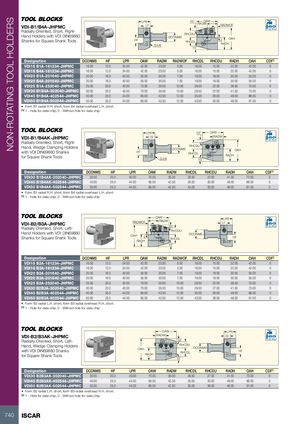

| VDI-B1/B4A-JHPMC Radially Oriented, Short, Right- Hand Holders with VDI DIN69880 Shanks for Square Shank Tools | LPR LF HF | G1/8 | DCONMS | O RADW RHCDU RHCDL 15˚ 15˚ | AW RA 2 RA | DWOF OAH DH | 80 Bar Max | ||||
| Designation | DCONMS | HF | LPR | OAW | RADW | RADWO | F RHCDL | RHCDU | RADH | OAH | CDI(1) |
| VDI16 B1A-161234-JHPMC | 16.00 | 12.0 | 34.00 | 42.00 | 23.00 | 5.00 | 16.00 | 15.00 | 22.00 | 42.00 | 0 |
| VDI16 B4A-161234-JHPMC | 16.00 | 12.0 | 34.00 | 42.00 | 23.00 | 5.00 | 16.00 | 15.00 | 22.00 | 42.00 | 0 |
| VDI20 B1A-201640-JHPMC | 20.00 | 16.0 | 40.00 | 55.00 | 30.00 | 7.00 | 19.00 | 19.00 | 30.00 | 55.00 | 0 |
| VDI20 B4A-201640-JHPMC | 20.00 | 16.0 | 40.00 | 55.00 | 30.00 | 7.00 | 19.00 | 19.00 | 30.00 | 55.00 | 0 |
| VDI25 B1A-252040-JHPMC | 25.00 | 20.0 | 40.00 | 70.00 | 35.00 | 10.00 | 29.50 | 22.00 | 38.50 | 70.00 | 0 |
| VDI30 B1B4A-302040-JHPMC | 30.00 | 20.0 | 40.00 | 70.00 | 35.00 | 10.00 | 29.50 | 22.00 | 41.50 | 73.00 | 0 |
| VDI40 B1B4A-402544-JHPMC | 40.00 | 25.0 | 44.00 | 85.00 | 42.50 | 12.50 | 35.00 | 30.00 | 48.00 | 86.00 | 0 |
| VDI50 B1B4A-502544-JHPMC | 50.00 | 25.0 | 44.00 | 85.00 | 42.50 | 12.50 | 43.00 | 30.00 | 48.00 | 91.00 | 0 |
- Form B1 radial R.H. short, form B4 radial overhead L.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
| LPR | 15˚ | OAW | ||
| VDI-B1/B4AK-JHPMC | 22 | RADW | 80 |
Radially Oriented, Short, Right- Bar Max Hand, Wedge Clamping Holders RHCDU DCONMS OAH with VDI DIN69880 Shanks HF
RHCDL for Square Shank Tools RADH G1/8 15˚
| Designation | DCONMS | HF | LPR | OAW | RADW | RHCDL | RHCDU | RADH | OAH | CDI(1) |
| VDI30 B1B4AK-302040-JHPMC | 30.00 | 20.0 | 40.00 | 70.00 | 35.00 | 29.50 | 22.00 | 41.50 | 73.00 | 0 |
| VDI40 B1B4AK-402544-JHPMC | 40.00 | 25.0 | 44.00 | 85.00 | 42.50 | 35.00 | 30.00 | 48.00 | 86.00 | 0 |
| VDI50 B1B4AK-502544-JHPMC | 50.00 | 25.0 | 44.00 | 85.00 | 42.50 | 43.00 | 30.00 | 48.00 | 91.00 | 0 |
- Form B1 radial R.H. short, form B4 radial overhead L.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
| DI-B2/B3A-JHPMC adially Oriented, Short, Left- and Holders with VDI DIN69880 hanks for Square Shank Tools | RADWOF 2 OAH RADH | OAW RADW | RHCDU RHCDL 15˚ 15˚ | DCONMS | L LF | PR HF | 80 Bar Max | ||||
| Designation | DCONMS | HF | LPR | OAW | RADW | RADWOF | RHCDL | RHCDU | RADH | OAH | CDI(1) |
| VDI16 B2A-161234-JHPMC | 16.00 | 12.0 | 34.00 | 42.00 | 23.00 | 5.00 | 16.00 | 15.00 | 22.00 | 42.00 | 0 |
| VDI16 B3A-161234-JHPMC | 16.00 | 12.0 | 34.00 | 42.00 | 23.00 | 5.00 | 16.00 | 15.00 | 22.00 | 42.00 | 0 |
| VDI20 B2A-201640-JHPMC | 20.00 | 16.0 | 40.00 | 55.00 | 30.00 | 7.00 | 19.00 | 19.00 | 30.00 | 55.00 | 0 |
| VDI20 B3A-201640-JHPMC | 20.00 | 16.0 | 40.00 | 55.00 | 30.00 | 7.00 | 19.00 | 19.00 | 30.00 | 55.00 | 0 |
| VDI25 B2A-252040-JHPMC | 25.00 | 20.0 | 40.00 | 70.00 | 35.00 | 10.00 | 29.50 | 22.00 | 38.50 | 70.00 | 0 |
| VDI30 B2B3A-302040-JHPMC | 30.00 | 20.0 | 40.00 | 70.00 | 35.00 | 10.00 | 29.50 | 27.00 | 41.50 | 73.00 | 0 |
| VDI40 B2B3A-402544-JHPMC | 40.00 | 25.0 | 44.00 | 85.00 | 42.50 | 12.50 | 35.00 | 30.00 | 48.00 | 86.00 | 0 |
| VDI50 B2B3A-502544-JHPMC | 50.00 | 25.0 | 44.00 | 85.00 | 42.50 | 12.50 | 43.00 | 38.00 | 48.00 | 91.00 | 0 |
- Form B2 radial L.H. short, form B3 radial overhead R.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
OAW LPR
| VDI-B2/B3AK-JHPMC | RADW | 22 | 80 | |
| Radially Oriented, Short, Left- | 15˚ | Bar Max |
Hand, Wedge Clamping Holders RHCDU OAH DCONMS with VDI DIN69880 Shanks HF RHCDL
for Square Shank Tools RADH 15˚
| Designation | DCONMS | HF | LPR | OAW | RADW | RHCDL | RHCDU | RADH | OAH | CDI(1) |
| VDI30 B2B3AK-302040-JHPMC | 30.00 | 20.0 | 40.00 | 70.00 | 35.00 | 29.50 | 27.00 | 41.50 | 73.00 | 0 |
| VDI40 B2B3AK-402544-JHPMC | 40.00 | 25.0 | 44.00 | 85.00 | 42.50 | 35.00 | 30.00 | 48.00 | 86.00 | 0 |
| VDI50 B2B3AK-502544-JHPMC | 50.00 | 25.0 | 44.00 | 85.00 | 42.50 | 35.00 | 38.00 | 48.00 | 91.00 | 0 |
- Form B2 radial L.H. short, form B3 radial overhead R.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
