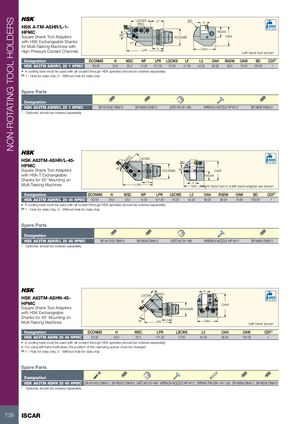

Square Shank Tool Adapters WF OAW
DCONMS with HSK Exchangeable Shanks 27° for Multi-Tasking Machines with
L5 OAH High-Pressure Coolant Channels LPR Left-hand tool shown
| Designation | DCONMS | H | WSC | WF | LPR | LSCWS | LF | L5 | OAH | RADW | OAW | BD | CDI(1) |
| HSK A63TM ASHR/L 25 1 HPMC | 63.00 | 25.0 | 25.0 | 13.00 | 137.00 | 70.00 | 47.00 | 42.00 | 82.00 | 38.0 | 70.00 | 100.00 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63TM ASHR/L 25 1 HPMC SR M12X30 DIN915 SR M8X6 DIN913 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M6X6 DIN913
- Optional, should be ordered separately
HSK A63TM-ASHR/L-45- LSCWS WSC BD Bar Max
HPMC
Square Shank Tool Adapters 45˚ WF
DCONMS OAW with HSK-T Exchangeable RADW Shanks for 45° Mounting on L5 H
Multi-Tasking Machines LPR OAH A right-hand tool in a left-hand adapter are shown
| Designation | DCONMS | H | WSC | WF | LPR | LSCWS | L5 | OAH | RADW | OAW | BD | CDI(1) |
| HSK A63TM ASHR/L 25 45 HPMC | 63.00 | 25.0 | 25.0 | 15.00 | 121.00 | 70.00 | 42.00 | 58.00 | 38.00 | 79.60 | 100.00 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63TM ASHR/L 25 45 HPMC SR M12X30 DIN915 SR M8X6 DIN913 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M6X6 DIN913
- Optional, should be ordered separately
H LSCWS WSC
HSK A63TM-ASHN-45-
HPMC Bar Max OAW
Square Shank Tool Adapters
DCONMS
with HSK Exchangeable
Shanks for 45° Mounting on
45˚ L5
| Multi-Tasking Machines | LPR | OAH | |
| Left-hand shown |
| Designation | DCONMS | H | WSC | LPR | LSCWS | L5 | OAH | OAW | CDI(1) |
| HSK A63TM ASHN 25 45 HPMC | 63.00 | 25.0 | 25.0 | 121.00 | 72.00 | 42.00 | 90.00 | 105.00 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- For using left-hand toolholder, the position of the clamping spacer must be changed
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63TM ASHN 25 45 HPMC SR M10X25 DIN912 SR M8X20 DIN916 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SPRING PIN DIN 1481 3X5 SR M8X6 DIN913 SR M6X6 DIN913
