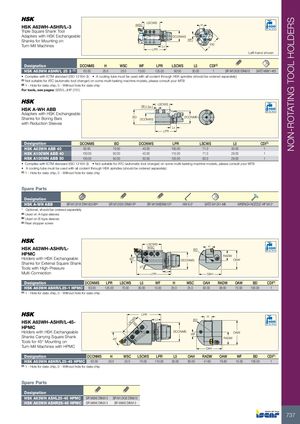

| HSK A63WH-ASHR/L-3 Triple Square Shank Tool Adapters with HSK Exchangeable Shanks for Mounting on Turn-Mill Machines | L5 LSCWS WSC DCONWS LPR | 100 WF H Left-hand shown Bar Max | |||
| Designation | DCONMS | H | WSC | WF LPR LSCWS | L5 CDI(2) |
| HSK A63WH ASHR/L 25 3(1) | 63.00 | 25.0 | 25.0 | 13.00 125.00 90.00 | 30.00 1 SR M12X30 DIN915 SATZ-M8X1-M3 |
- Complies with ICTM standard (ISO 12164-3)
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: SER/L-JHP (701)
| HSK A-WH ABB Adapters with HSK Exchangeable Shanks for Boring Bars with Reduction Sleeves | M12 Typ 2 L DCONWS BD | L5 SCWS DCO LPR | NMS | ||||
| Designation D | CONMS | BD | DCONWS | LPR | LSCWS | L5 | CDI(1) |
| HSK A63WH ABB 40 | 63.00 | 75.00 | 40.00 | 105.00 | 71.0 | 30.00 | 1 |
| HSK A100WH ABB 40 | 100.00 | 82.00 | 40.00 | 115.00 | 71.0 | 29.00 | 1 |
| HSK A100WH ABB 50 | 100.00 | 92.00 | 50.00 | 125.00 | 83.0 | 29.00 | 1 |
- Complies with ICTM standard (ISO 12164-3)
- Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A-WH ABB SR M12X16 DIN1835-B(a) SR M12X30 DIN915(b) SR M10X6DIN913(c) HW 6.0* SATZ-M12X1-M6 WRENCH NOZZLE HP M12*
* Optional, should be ordered separately (a) Used on A-type sleeves (b) Used on B type sleeves (c) Rear stopper screw
| HSK A63WH-ASHR/L- HPMC Holders with HSK Exchangeable Shanks for External Square Shank Tools with High-Pressure | WF | 27˚ LSCWS WSC | DCONMS BD | H RADW | OAW | Bar Max | |||
| Multi-Connection | L5 LPR | OAH | |||||||
| Designation | DCONMS | LPR | LSCWS | L5 WF H | WSC | OAH RADW | OAW | BD | CDI(1) |
| HSK A63WH ASHR/L25-1 HPMC | 63.00 | 125.00 | 70.00 | 30.00 13.00 25.0 | 25.0 | 82.00 38.00 | 70.00 | 100.00 | 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
| HSK A63WH-ASHR/L-45- HPMC Holders with HSK Exchangeable Shanks Carrying Square Shank Tools for 45° Mounting on Turn-Mill Machines with HPMC | 45˚ LSCW | LPR WSC S | DCONMS L5 | WF BD | OA H | RADW H O | AW | Bar Max | ||
| Designation | DCONMS | H WSC | LSCWS | LPR L5 | OAH | RADW | OAW | WF | BD | CDI(1) |
| HSK A63WH ASHR/L25-45 HPMC | 63.00 | 25.0 25.0 | 70.00 | 110.00 30.00 | 83.00 | 41.60 | 79.60 | 15.00 | 100.00 | 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
| HSK A63WH ASHL25-45 HPMC | SR M6X6 DIN913 | SR M12X30 DIN915 |
| HSK A63WH ASHR25-45 HPMC | SR M6X6 DIN913 | SR M8X6 DIN913 |
