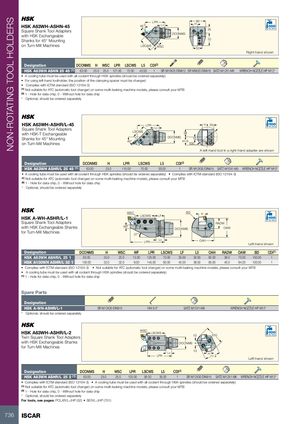

LPR 90
| HSK A63WH-ASHN-45 | L | H | |
| 45° | 5 |
Square Shank Tool Adapters 35 Bar Max
with HSK Exchangeable DCONMS Shanks for 45° Mounting 70 on Turn-Mill Machines LSCWS WSC
50 Right-hand shown
| Designation | DCONMS H WSC LPR LSCWS | L5 | CDI(2) | ||||
| HSK A63WH ASHN 25 45 (1) | 63.00 | 25.0 25.0 121.00 | 72.00 | 42.00 | 1 | SR M10X25 DIN912 SR M8X20 DIN916 SATZ-M12X1-M6 | WRENCH NOZZLE HP M12* |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- For using left-hand toolholder, the position of the clamping spacer must be changed
- Complies with ICTM standard (ISO 12164-3)
(1) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB (2) 1 - Hole for data chip, 0 - Without hole for data chip
- Optional, should be ordered separately
HSK A63WH-ASHR/L-45 LPR H 33
| Square Shank Tool Adapters | L5 | Bar Max | ||
| with HSK-T Exchangeable | LSCWS | |||
| 38 |
Shanks for 45° Mounting DCONMS 15
| on Turn-Mill Machines | 45° | 41.6 | ||
| 100 | ||||
| A left-hand tool in a right-hand adapter are shown |
| Designation | DCONMS | H | LPR | LSCWS | L5 | CDI(2) | |
| HSK A63WH ASHR/L 25 45 (1) | 63.00 | 25.0 | 110.00 | 70.00 | 30.00 | 1 | SR M12X30 DIN915 SATZ-M10X1-M5 WRENCH NOZZLE HP M10* |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with ICTM standard (ISO 12164-3)
(1) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB (2) 1 - Hole for data chip, 0 - Without hole for data chip
- Optional, should be ordered separately
| HSK A-WH-ASHR/L-1 Square Shank Tool Adapters | W | LSCWS SC | LF | BD | H | RADW | Bar Max | ||||
| with HSK Exchangeable Shanks | WF | DCONMS | OAW | ||||||||
| for Turn-Mill Machines | 27° | ||||||||||
| LPR | L5 | OAH | Left-hand | shown | |||||||
| Designation | DCONMS | H | WSC | WF LPR | LSCWS | LF | L5 OAH | RADW | OAW | BD | CDI(1) |
| HSK A63WH ASHR/L 25 1 | 63.00 | 25.0 | 25.0 | 13.00 125.00 | 70.00 | 35.00 | 30.00 82.00 | 38.0 | 70.00 | 100.00 | 1 |
| HSK A100WH ASHR/L 32 1 | 100.00 | 32.0 | 32.0 | 8.00 145.00 | 90.00 | 45.00 | 38.00 85.00 | 40.0 | 84.00 | 100.00 | 1 |
- Complies with ICTM standard (ISO 12164-3)
- Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | |||
| HSK A-WH-ASHR/L-1 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 WRENCH NOZZLE HP M12 |
- Optional, should be ordered separately
HSK A63WH-ASHR/L-2 WSC LSCWS
Twin Square Shank Tool Adapters 13 100 Bar Max
with HSK Exchangeable Shanks DCONMS for Turn-Mill Machines 13
L5 H LPR 77.4 Left-hand shown
| Designation | DCONMS | H | WSC | LPR | LSCWS | L5 | CDI(2) | |
| HSK A63WH ASHR/L 25 2 (1) | 63.00 | 25.0 | 25.0 | 125.00 | 95.00 | 30.00 | 1 | SR M12X30 DIN915 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* |
- Complies with ICTM standard (ISO 12164-3)
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: PCLXR/L-JHP (52) SER/L-JHP (701)
