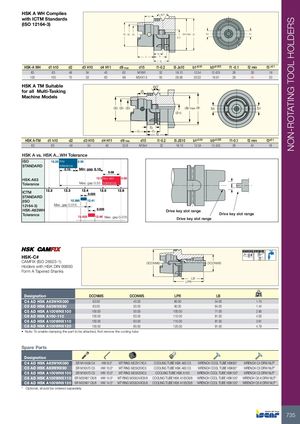

HSK A WH Complies
with ICTM Standards
(ISO 12164-3)
l5
d2 d4 d3
60°
d9 max. d1 b5 b1
d15
f3 l1 f1 f2
| HSK-A WH | d1 h10 | d2 | d3 H10 | d4 H11 | d9 max | d15 | l1-0.2 | l5 Js10 | b1±0.04 | b5±0.035 | f1 -0.1 | f2 min | f3 ±0.1 | |
| 63 | 63 | 48 | 34 | 40 | 62 | M18X1 | 32 | 18.13 | 12.54 | 12.425 | 26 | 30 | 18 | |
| 100 | 100 | 75 | 53 | 63 | 99 | M24X1.5 | 50 | 28.56 | 20.02 | 19.91 | 29 | 34 | 20 | |
| HSK A TM Suitable | 60˚ | |||||||||||||
| for all Multi-Tasking | l5 | |||||||||||||
| Machine Models |
d2 d4 d3 d9 max d1 b b1
5 d15
f3
l1 f1
f2
| HSK A-TM | d1 h10 | d2 | d3 H10 | d4 H11 | d9 max | d15 | l1-0.2 | l5 JS10 | b1±0.04 | b5 ±0.035 | f1-0.1 | f2 min | f3 ±0.1 | |
| 63 63 | 48 | 34 | 40 | 52.8 | M18x1 | 32 | 18.13 | 12.54 | 12.425 | 26 | 42 | 18 | ||
| HSK A vs. HSK A...WH Tolerance | ||||||||||||||
| ISO | key | |||||||||||||
| STANDARD | tolerance | |||||||||||||
| HSK-A63 | key slot | |||||||||||||
| Tolerance | Max. gap 0.33 | tolerance |
ICTM STANDARD (ISO 12164-3) Max. gap 0.015
HSK-A63WH Drive key slot range Tolerance Drive key slot range Max. gap 0.075 Drive key slot range
HSK-C#
CAMFIX (ISO 26623-1)
Holders with HSK DIN 69893
Form A Tapered Shanks
DCONMS
A 0.003 A 58-60 HRc
DCONWS
LB LPR
| Designation | DCONMS | DCONWS | LPR | LB | kg |
| C4 AD HSK A63WHX080 | 63.00 | 40.00 | 80.00 | 54.00 | 1.10 |
| C5 AD HSK A63WHX90 | 63.00 | 50.00 | 90.00 | 64.00 | 1.44 |
| C5 AD HSK A100WHX100 | 100.00 | 50.00 | 100.00 | 71.00 | 2.90 |
| C6 AD HSK A100-110 | 100.00 | 63.00 | 110.00 | 81.00 | 4.00 |
| C6 AD HSK A100WHX110 | 100.00 | 63.00 | 110.00 | 81.00 | 3.61 |
| C8 AD HSK A100WHX120 | 100.00 | 80.00 | 120.00 | 91.00 | 4.79 |
- Note: To enable clamping the part to be attached, first remove the cooling tube
Spare Parts
| Designation | ||||||
| C4 AD HSK A63WHX080 | SR M14X58 C4 | HW 8.0 | MT RING M22X17XC4 | COOLING TUBE HSK A63 C5 | WRENCH COOL TUBE HSK63 | WRENCH C4 DRW NUT |
| C5 AD HSK A63WHX90 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE HSK A63 C5 | WRENCH COOL TUBE HSK63 | WRENCH C5 DRW NUT |
| C5 AD HSK A100WHX100 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 | WRENCH C5 DRW NUT |
| C6 AD HSK A100WHX110 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE HSK A100C6/8 | WRENCH COOL TUBE HSK100 | WRENCH C6-8 DRW NUT |
| C8 AD HSK A100WHX120 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE HSK A100C6/8 | WRENCH COOL TUBE HSK100 | WRENCH C6-8 DRW NUT |
