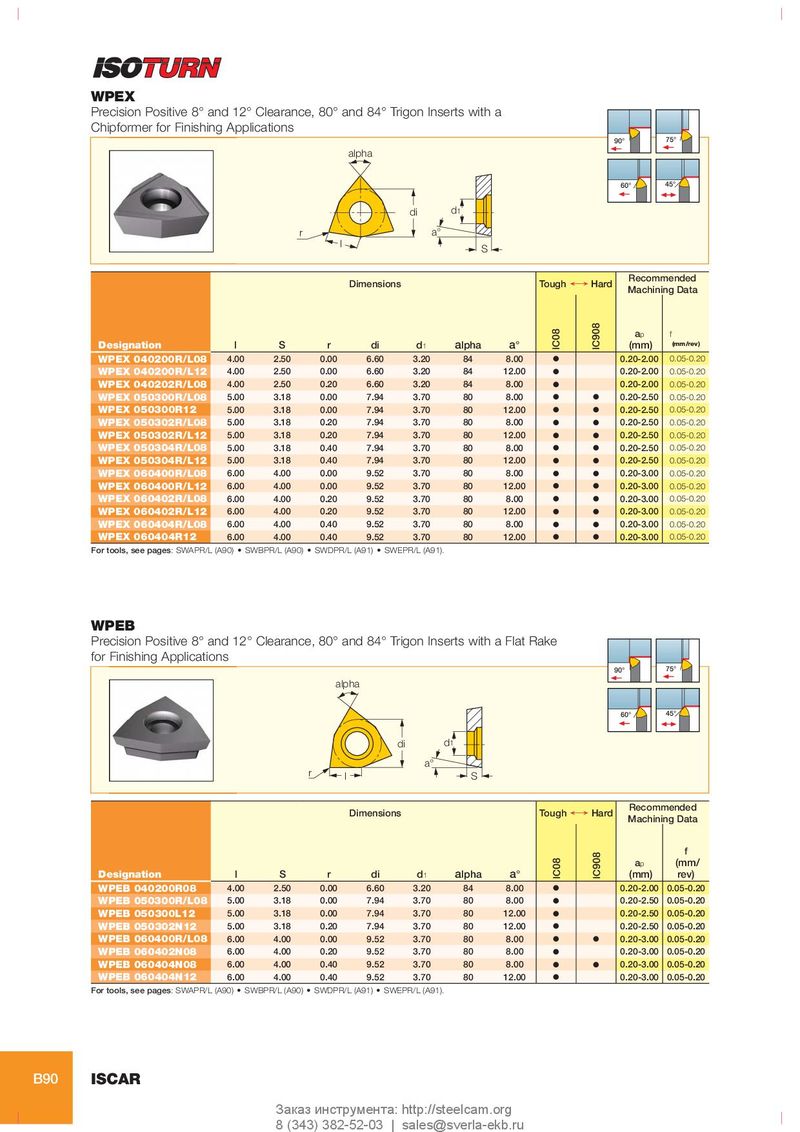

WPEX
Precision Positive 8° and 12° Clearance, 80° and 84° Trigon Inserts with a
Chipformer for Finishing Applications
90° 75°
alpha

60° 45°

di d1
r a°
l
S
Recommended
Dimensions Tough ¥ Hard
Machining Data


IC908
IC08
ap f
Designation l S r di d1 alpha a° (mm) (mm/rev)
WPEX 040200R/L08 4.00 2.50 0.00 6.60 3.20 84 8.00 O 0.20-2.00 0.05-0.20
WPEX 040200R/L12 4.00 2.50 0.00 6.60 3.20 84 12.00 O 0.20-2.00 0.05-0.20
WPEX 040202R/L08 4.00 2.50 0.20 6.60 3.20 84 8.00 O 0.20-2.00 0.05-0.20
WPEX 050300R/L08 5.00 3.18 0.00 7.94 3.70 80 8.00 O O 0.20-2.50 0.05-0.20
WPEX 050300R12 5.00 3.18 0.00 7.94 3.70 80 12.00 O O 0.20-2.50 0.05-0.20
WPEX 050302R/L08 5.00 3.18 0.20 7.94 3.70 80 8.00 O O 0.20-2.50 0.05-0.20
WPEX 050302R/L12 5.00 3.18 0.20 7.94 3.70 80 12.00 O O 0.20-2.50 0.05-0.20
WPEX 050304R/L08 5.00 3.18 0.40 7.94 3.70 80 8.00 O O 0.20-2.50 0.05-0.20
WPEX 050304R/L12 5.00 3.18 0.40 7.94 3.70 80 12.00 O O 0.20-2.50 0.05-0.20
WPEX 060400R/L08 6.00 4.00 0.00 9.52 3.70 80 8.00 O O 0.20-3.00 0.05-0.20
WPEX 060400R/L12 6.00 4.00 0.00 9.52 3.70 80 12.00 O O 0.20-3.00 0.05-0.20
WPEX 060402R/L08 6.00 4.00 0.20 9.52 3.70 80 8.00 O O 0.20-3.00 0.05-0.20
WPEX 060402R/L12 6.00 4.00 0.20 9.52 3.70 80 12.00 O O 0.20-3.00 0.05-0.20
WPEX 060404R/L08 6.00 4.00 0.40 9.52 3.70 80 8.00 O O 0.20-3.00 0.05-0.20
WPEX 060404R12 6.00 4.00 0.40 9.52 3.70 80 12.00 O O 0.20-3.00 0.05-0.20
For tools, see pages: SWAPR/L (A90) • SWBPR/L (A90) • SWDPR/L (A91) • SWEPR/L (A91).


WPEB
Precision Positive 8° and 12° Clearance, 80° and 84° Trigon Inserts with a Flat Rake
for Finishing Applications
90° 75°
alpha
60° 45°

di d1
a°
r l S
Recommended
Dimensions Tough ¥ Hard
Machining Data

f
IC908
IC08


ap (mm/
Designation l S r di d1 alpha a° (mm) rev)
WPEB 040200R08 4.00 2.50 0.00 6.60 3.20 84 8.00 O 0.20-2.00 0.05-0.20
WPEB 050300R/L08 5.00 3.18 0.00 7.94 3.70 80 8.00 O 0.20-2.50 0.05-0.20
WPEB 050300L12 5.00 3.18 0.00 7.94 3.70 80 12.00 O 0.20-2.50 0.05-0.20
WPEB 050302N12 5.00 3.18 0.20 7.94 3.70 80 12.00 O 0.20-2.50 0.05-0.20
WPEB 060400R/L08 6.00 4.00 0.00 9.52 3.70 80 8.00 O O 0.20-3.00 0.05-0.20
WPEB 060402N08 6.00 4.00 0.20 9.52 3.70 80 8.00 O 0.20-3.00 0.05-0.20
WPEB 060404N08 6.00 4.00 0.40 9.52 3.70 80 8.00 O O 0.20-3.00 0.05-0.20
WPEB 060404N12 6.00 4.00 0.40 9.52 3.70 80 12.00 O 0.20-3.00 0.05-0.20
For tools, see pages: SWAPR/L (A90) • SWBPR/L (A90) • SWDPR/L (A91) • SWEPR/L (A91).


B90 ISCAR
