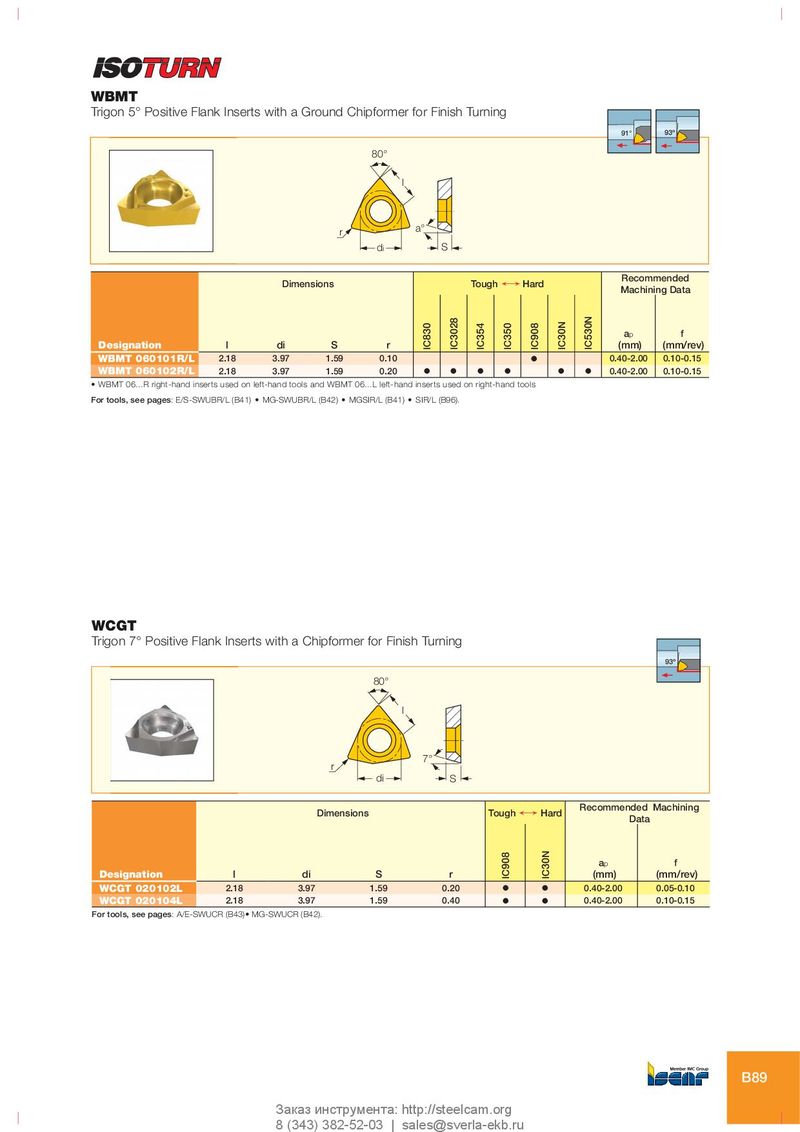

WBMT
Trigon 5° Positive Flank Inserts with a Ground Chipformer for Finish Turning
91° 93º 80°
l
r a° di S
Dimensions
Tough ¥ Hard
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | |||||||
| WBMT 060101R/L | 2.18 | 3.97 | 1.59 | 0.10 | O | 0.40-2.00 | 0.10-0.15 | ||||||
| WBMT 060102R/L | 2.18 | 3.97 | 1.59 | 0.20 | O | O | O | O | O | O | 0.40-2.00 | 0.10-0.15 |
- WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools
For tools, see pages: E/S-SWUBR/L (B41) MG-SWUBR/L (B42) MGSIR/L (B41) SIR/L (B96).
WCGT
Trigon 7° Positive Flank Inserts with a Chipformer for Finish Turning
93º 80°
l
7° r di S
Dimensions
Tough ¥ Hard
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| WCGT 020102L | 2.18 | 3.97 | 1.59 | 0.20 | O | O | 0.40-2.00 | 0.05-0.10 |
| WCGT 020104L | 2.18 | 3.97 | 1.59 | 0.40 | O | O | 0.40-2.00 | 0.10-0.15 |
For tools, see pages: A/E-SWUCR (B43)• MG-SWUCR (B42).
