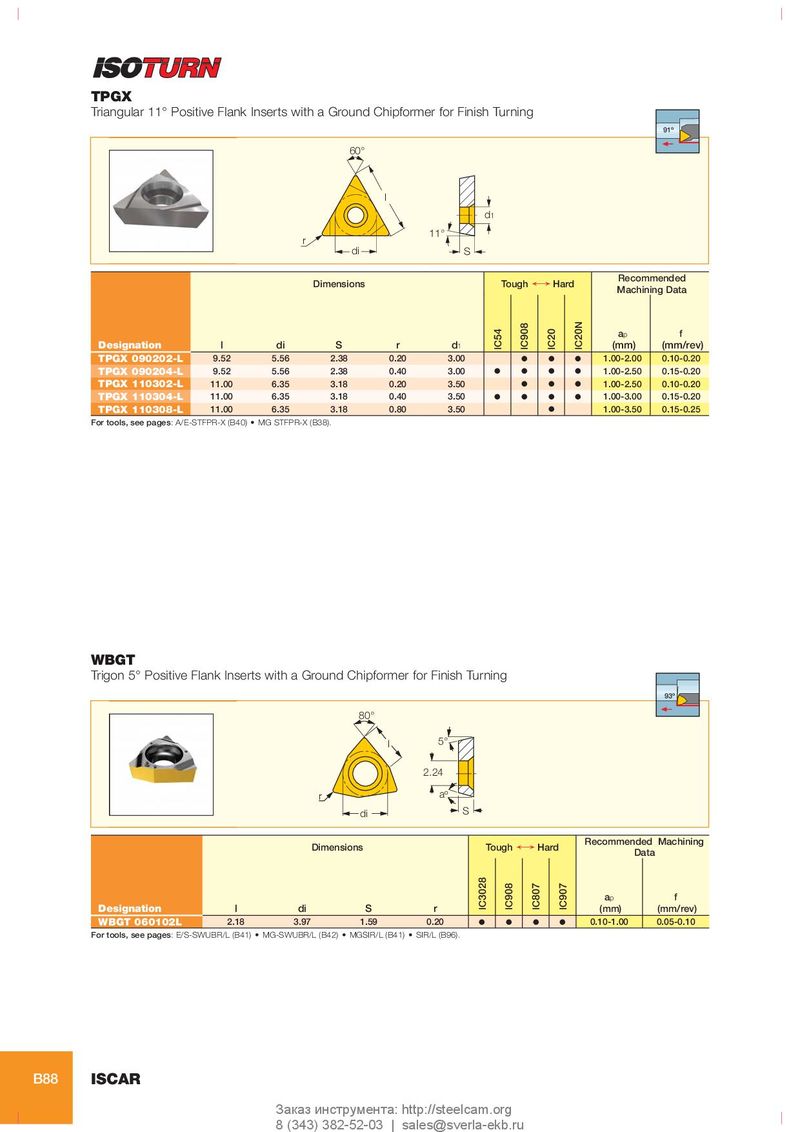

TPGX
Triangular 11° Positive Flank Inserts with a Ground Chipformer for Finish Turning
91º

60°

l
d1
11°
r
di S
Recommended
Dimensions Tough ¥ Hard
Machining Data


IC20N
IC908
IC54


IC20
ap f
Designation l di S r d1 (mm) (mm/rev)
TPGX 090202-L 9.52 5.56 2.38 0.20 3.00 O O O 1.00-2.00 0.10-0.20
TPGX 090204-L 9.52 5.56 2.38 0.40 3.00 O O O O 1.00-2.50 0.15-0.20
TPGX 110302-L 11.00 6.35 3.18 0.20 3.50 O O O 1.00-2.50 0.10-0.20
TPGX 110304-L 11.00 6.35 3.18 0.40 3.50 O O O O 1.00-3.00 0.15-0.20
TPGX 110308-L 11.00 6.35 3.18 0.80 3.50 O 1.00-3.50 0.15-0.25
For tools, see pages: A/E-STFPR-X (B40) • MG STFPR-X (B38).


WBGT
Trigon 5° Positive Flank Inserts with a Ground Chipformer for Finish Turning
93º
80°
l 5°

2.24
r aº
di S
Recommended Machining
Dimensions Tough ¥ Hard
Data
IC3028
IC908
IC807
IC907


ap f
Designation l di S r (mm) (mm/rev)
WBGT 060102L 2.18 3.97 1.59 0.20 O O O O 0.10-1.00 0.05-0.10
For tools, see pages: E/S-SWUBR/L (B41) • MG-SWUBR/L (B42) • MGSIR/L (B41) • SIR/L (B96).


B88 ISCAR
