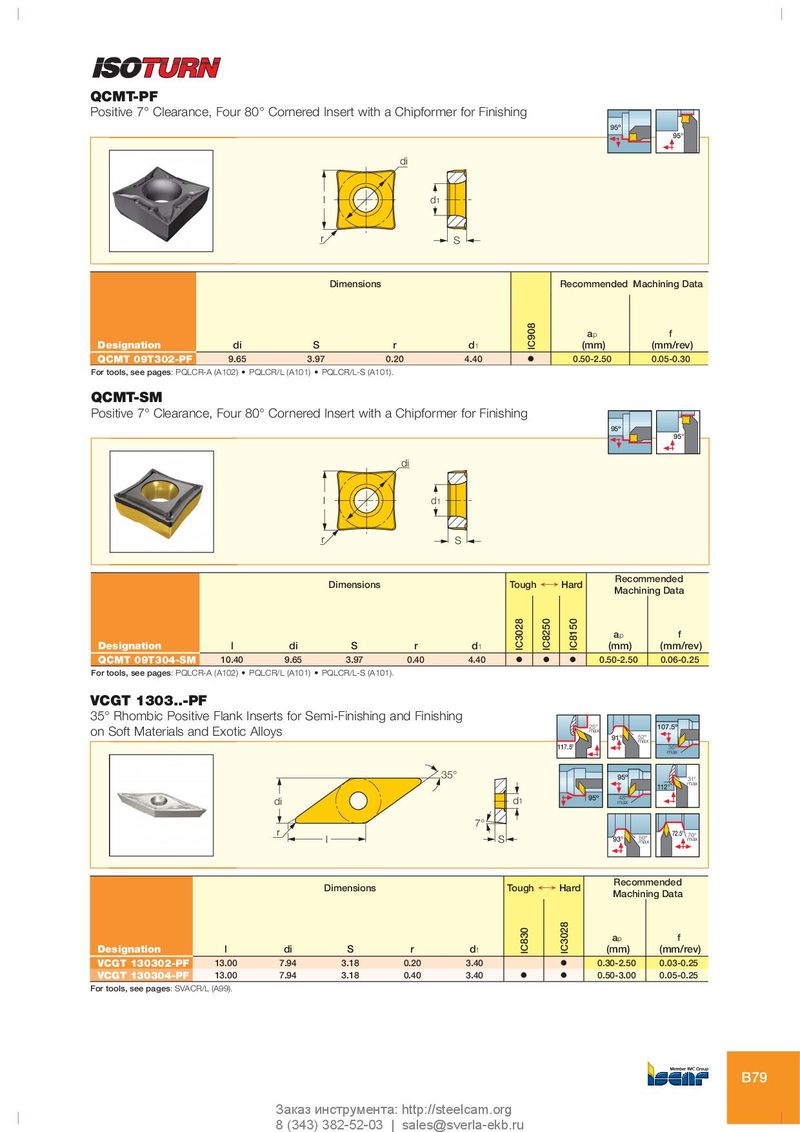

QCMT-PF
Positive 7° Clearance, Four 80° Cornered Insert with a Chipformer for Finishing
di
95º 95°
l d1
r S
Dimensions Recommended Machining Data
| Designation | di | S | r | d1 | |
| QCMT 09T302-PF | 9.65 | 3.97 | 0.20 | 4.40 | O |
For tools, see pages: PQLCR-A (A102) • PQLCR/L (A101) • PQLCR/L-S (A101). QCMT-SM Positive 7° Clearance, Four 80° Cornered Insert with a Chipformer for Finishing
di
ap f (mm) (mm/rev) 0.50-2.50 0.05-0.30
95º 95°
l d1
r S
Recommended Dimensions Tough ¥ Hard Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) |
| QCMT 09T304-SM | 10.40 | 9.65 | 3.97 | 0.40 | 4.40 | O O O 0.50-2.50 | 0.06-0.25 |
| For tools, see pages: PQLCR-A (A102) • PQLCR/L (A101) • PQLCR/L-S (A101). | |||||||
| VCGT 1303..-PF | |||||||
| 35° Rhombic Positive Flank Inserts for Semi-Finishing and Finishing | |||||||
| on Soft Materials and Exotic Alloys | 25° | 107.5º |
max 91° 52° max 117.5° 35º
max 35° 95º 31° max 112°
| di | d | 95º | 48º | ||
| 1 | max | ||||
| 7° | |||||
| r | 72.5° |
| l | S | 50° | 70° | |
| 93° | max | max |
Recommended Dimensions Tough ¥ Hard Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | ||
| VCGT 130302-PF | 13.00 | 7.94 | 3.18 | 0.20 | 3.40 | O | 0.30-2.50 | 0.03-0.25 | |
| VCGT 130304-PF | 13.00 | 7.94 | 3.18 | 0.40 | 3.40 | O | O | 0.50-3.00 | 0.05-0.25 |
For tools, see pages: SVACR/L (A99).
