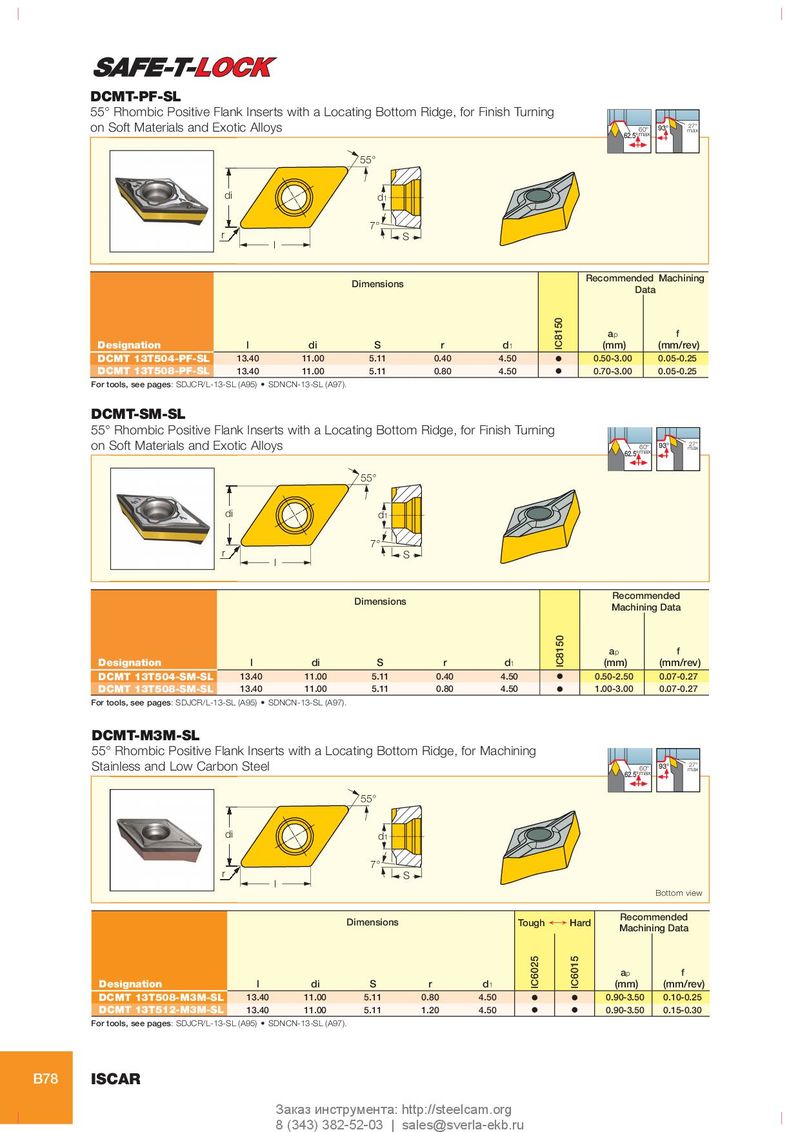

DCMT-PF-SL
55° Rhombic Positive Flank Inserts with a Locating Bottom Ridge, for Finish Turning
on Soft Materials and Exotic Alloys
55°
didi d 1
7° rr S l
Dimensions
93° 27° 60° max 62.5° max
Recommended Machining Data
| Designation | l | di | S | r | d1 | |
| DCMT 13T504-PF-SL | 13.40 | 11.00 | 5.11 | 0.40 | 4.50 | O |
| DCMT 13T508-PF-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | O |
For tools, see pages: SDJCR/L-13-SL (A95) • SDNCN-13-SL (A97). DCMT-SM-SL 55° Rhombic Positive Flank Inserts with a Locating Bottom Ridge, for Finish Turning on Soft Materials and Exotic Alloys
55°
didi d 1
7° rr S l
Dimensions
ap f
| (mm) | (mm/rev) | ||
| 0.50-3.00 | 0.05-0.25 | ||
| 0.70-3.00 | 0.05-0.25 | ||
| 93° | 27° | ||
| 60° | max |
62.5° max
Recommended Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | |
| DCMT 13T504-SM-SL | 13.40 | 11.00 | 5.11 | 0.40 | 4.50 | O | 0.50-2.50 | 0.07-0.27 |
| DCMT 13T508-SM-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | O | 1.00-3.00 | 0.07-0.27 |
For tools, see pages: SDJCR/L-13-SL (A95) • SDNCN-13-SL (A97).
DCMT-M3M-SL
55° Rhombic Positive Flank Inserts with a Locating Bottom Ridge, for Machining
Stainless and Low Carbon Steel 93° 27°
60° max 62.5° max 55°
didi d 1
7° rr S l Bottom view
Recommended Dimensions Tough ¥ Hard Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | ||
| DCMT 13T508-M3M-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | O | O | 0.90-3.50 | 0.10-0.25 |
| DCMT 13T512-M3M-SL | 13.40 | 11.00 | 5.11 | 1.20 | 4.50 | O | O | 0.90-3.50 | 0.15-0.30 |
For tools, see pages: SDJCR/L-13-SL (A95) • SDNCN-13-SL (A97).
