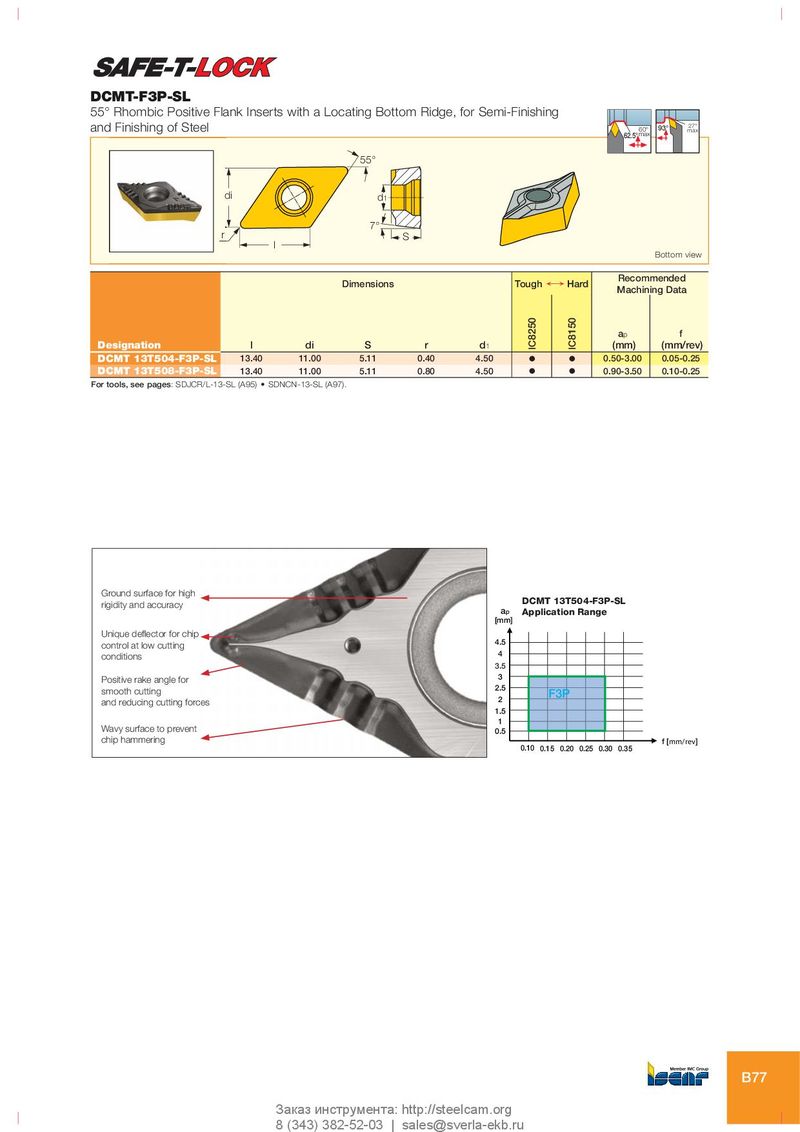

DCMT-F3P-SL
55° Rhombic Positive Flank Inserts with a Locating Bottom Ridge, for Semi-Finishing
and Finishing of Steel
55°
did d 1
7° rr S l
Dimensions Tough ¥ Hard
93° 27° 60° max 62.5° max
Bottom view
Recommended Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | ||
| DCMT 13T504-F3P-SL | 13.40 | 11.00 | 5.11 | 0.40 | 4.50 | O | O | 0.50-3.00 | 0.05-0.25 |
| DCMT 13T508-F3P-SL | 13.40 | 11.00 | 5.11 | 0.80 | 4.50 | O | O | 0.90-3.50 | 0.10-0.25 |
For tools, see pages: SDJCR/L-13-SL (A95) • SDNCN-13-SL (A97).
Ground surface for high rigidity and accuracy DCMT 13T504-F3P-SL ap Application Range [mm] Unique deflector for chip control at low cutting 4.5 conditions 4 3.5 Positive rake angle for 3
smooth cutting 2.5 F3P
and reducing cutting forcesces 2 1.5 1 Wavy surface to prevent
0.5 chip hammering f [mm/rev] 0.10 0.15 0.20 0.25 0.30 0.35
