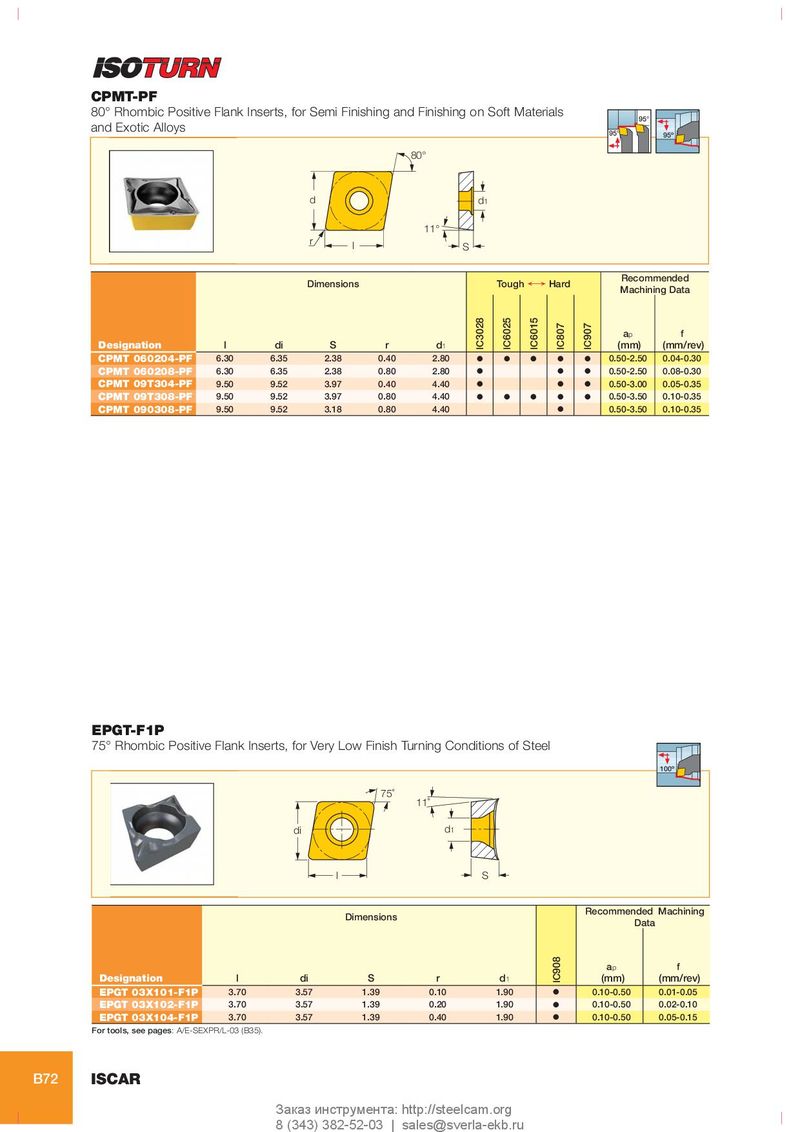

Каталог Iscar инструмент для внутренней обработки - страница 72

CPMT-PF
80° Rhombic Positive Flank Inserts, for Semi Finishing and Finishing on Soft Materials 95°
and Exotic Alloys 95° 95º

80°

d d1
11°
r l S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC3028
IC6025
IC6015
IC807
IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
CPMT 060204-PF 6.30 6.35 2.38 0.40 2.80 O O O O O 0.50-2.50 0.04-0.30
CPMT 060208-PF 6.30 6.35 2.38 0.80 2.80 O O O 0.50-2.50 0.08-0.30
CPMT 09T304-PF 9.50 9.52 3.97 0.40 4.40 O O O 0.50-3.00 0.05-0.35
CPMT 09T308-PF 9.50 9.52 3.97 0.80 4.40 O O O O O 0.50-3.50 0.10-0.35
CPMT 090308-PF 9.50 9.52 3.18 0.80 4.40 O 0.50-3.50 0.10-0.35


EPGT-F1P
75° Rhombic Positive Flank Inserts, for Very Low Finish Turning Conditions of Steel
100º

75˚
11˚
di d1

l S

Recommended Machining
Dimensions
Data
IC908


ap f
Designation l di S r d1 (mm) (mm/rev)
EPGT 03X101-F1P 3.70 3.57 1.39 0.10 1.90 O 0.10-0.50 0.01-0.05
EPGT 03X102-F1P 3.70 3.57 1.39 0.20 1.90 O 0.10-0.50 0.02-0.10
EPGT 03X104-F1P 3.70 3.57 1.39 0.40 1.90 O 0.10-0.50 0.05-0.15
For tools, see pages: A/E-SEXPR/L-03 (B35).


B72 ISCAR
