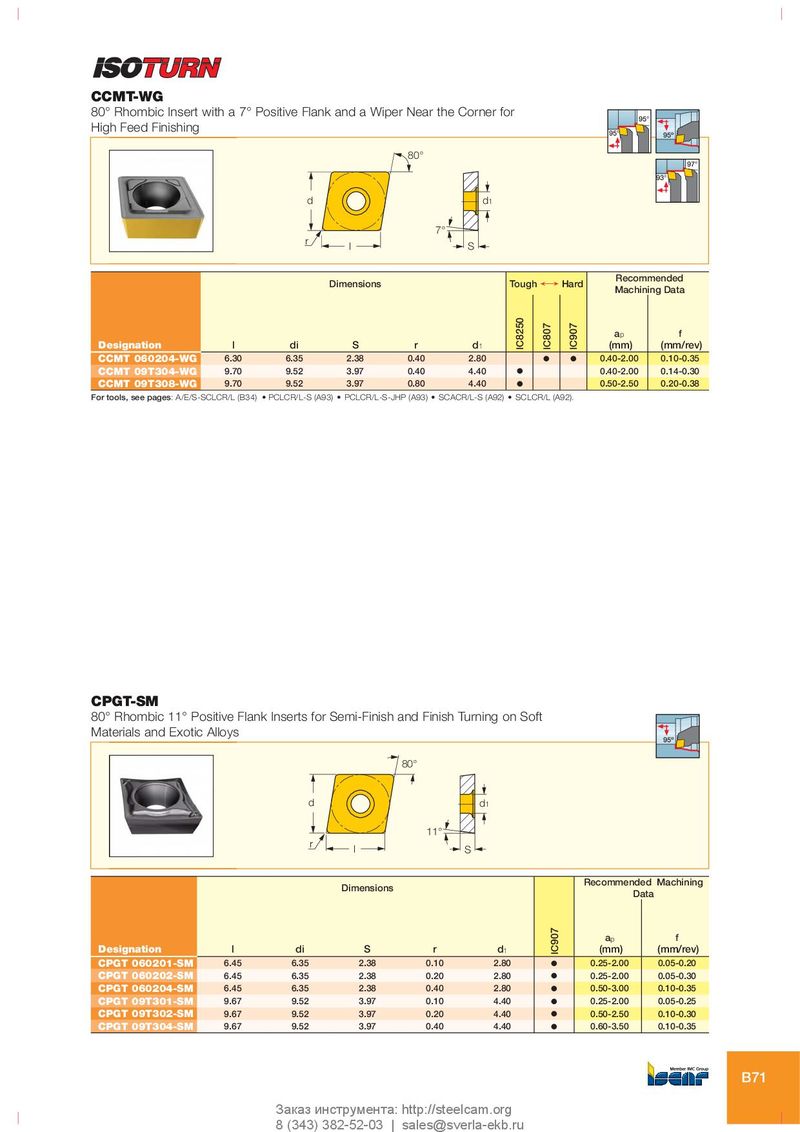

Каталог Iscar инструмент для внутренней обработки - страница 71

CCMT-WG
80° Rhombic Insert with a 7° Positive Flank and a Wiper Near the Corner for 95°
High Feed Finishing 95° 95º

80°
97°
93°

d d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC8250
IC807
IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
CCMT 060204-WG 6.30 6.35 2.38 0.40 2.80 O O 0.40-2.00 0.10-0.35
CCMT 09T304-WG 9.70 9.52 3.97 0.40 4.40 O 0.40-2.00 0.14-0.30
CCMT 09T308-WG 9.70 9.52 3.97 0.80 4.40 O 0.50-2.50 0.20-0.38
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).


CPGT-SM
80° Rhombic 11° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft
Materials and Exotic Alloys 95º

80°

d d1
11°
r
l S

Recommended Machining
Dimensions
Data
IC907


ap f
Designation l di S r d1 (mm) (mm/rev)
CPGT 060201-SM 6.45 6.35 2.38 0.10 2.80 O 0.25-2.00 0.05-0.20
CPGT 060202-SM 6.45 6.35 2.38 0.20 2.80 O 0.25-2.00 0.05-0.30
CPGT 060204-SM 6.45 6.35 2.38 0.40 2.80 O 0.50-3.00 0.10-0.35
CPGT 09T301-SM 9.67 9.52 3.97 0.10 4.40 O 0.25-2.00 0.05-0.25
CPGT 09T302-SM 9.67 9.52 3.97 0.20 4.40 O 0.50-2.50 0.10-0.30
CPGT 09T304-SM 9.67 9.52 3.97 0.40 4.40 O 0.60-3.50 0.10-0.35


B71
