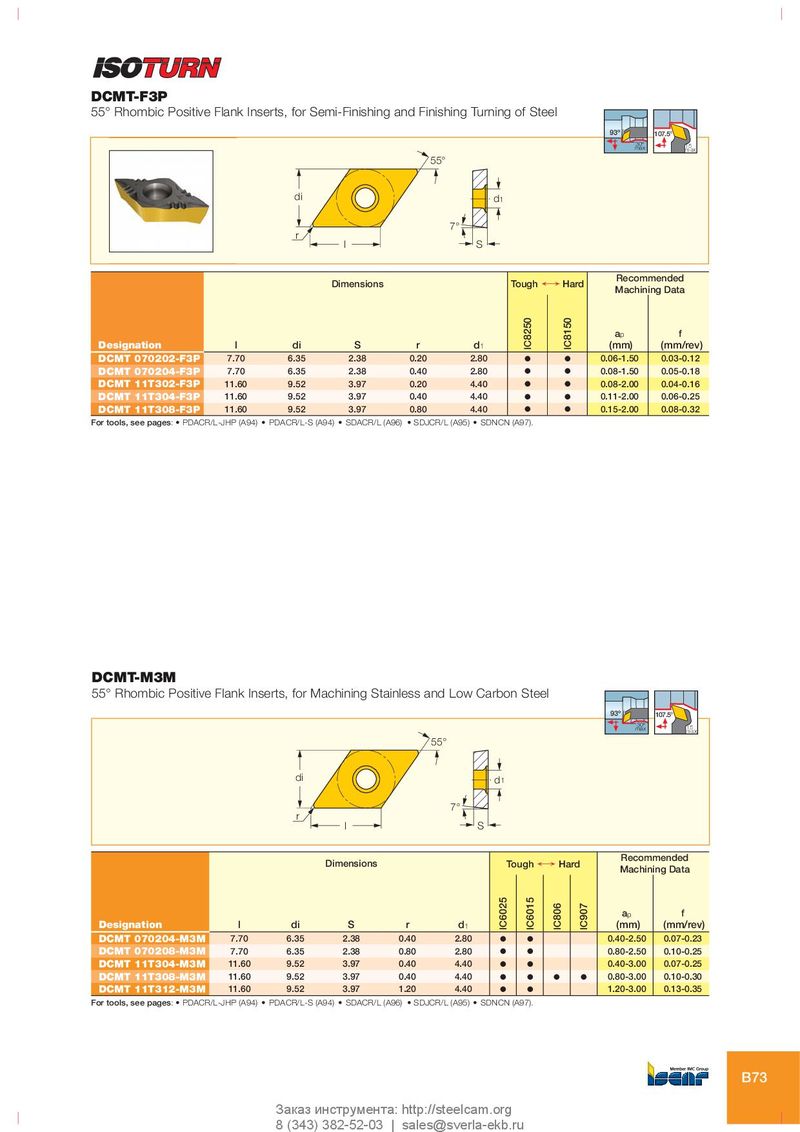

Каталог Iscar инструмент для внутренней обработки - страница 73

DCMT-F3P
55° Rhombic Positive Flank Inserts, for Semi-Finishing and Finishing Turning of Steel
93º 107.5°
30º –
max TH_
55°

di d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC8250

IC8150
ap f
Designation l di S r d1 (mm) (mm/rev)
DCMT 070202-F3P 7.70 6.35 2.38 0.20 2.80 O O 0.06-1.50 0.03-0.12
DCMT 070204-F3P 7.70 6.35 2.38 0.40 2.80 O O 0.08-1.50 0.05-0.18
DCMT 11T302-F3P 11.60 9.52 3.97 0.20 4.40 O O 0.08-2.00 0.04-0.16
DCMT 11T304-F3P 11.60 9.52 3.97 0.40 4.40 O O 0.11-2.00 0.06-0.25
DCMT 11T308-F3P 11.60 9.52 3.97 0.80 4.40 O O 0.15-2.00 0.08-0.32
For tools, see pages: • PDACR/L-JHP (A94) • PDACR/L-S (A94) • SDACR/L (A96) • SDJCR/L (A95) • SDNCN (A97).


DCMT-M3M
55° Rhombic Positive Flank Inserts, for Machining Stainless and Low Carbon Steel
93º 107.5°
30º –
max TH_
55°

di d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data
IC6025
IC6015
IC806
IC907


ap f
Designation l di S r d1 (mm) (mm/rev)
DCMT 070204-M3M 7.70 6.35 2.38 0.40 2.80 O O 0.40-2.50 0.07-0.23
DCMT 070208-M3M 7.70 6.35 2.38 0.80 2.80 O O 0.80-2.50 0.10-0.25
DCMT 11T304-M3M 11.60 9.52 3.97 0.40 4.40 O O 0.40-3.00 0.07-0.25
DCMT 11T308-M3M 11.60 9.52 3.97 0.40 4.40 O O O O 0.80-3.00 0.10-0.30
DCMT 11T312-M3M 11.60 9.52 3.97 1.20 4.40 O O 1.20-3.00 0.13-0.35
For tools, see pages: • PDACR/L-JHP (A94) • PDACR/L-S (A94) • SDACR/L (A96) • SDJCR/L (A95) • SDNCN (A97).


B73
