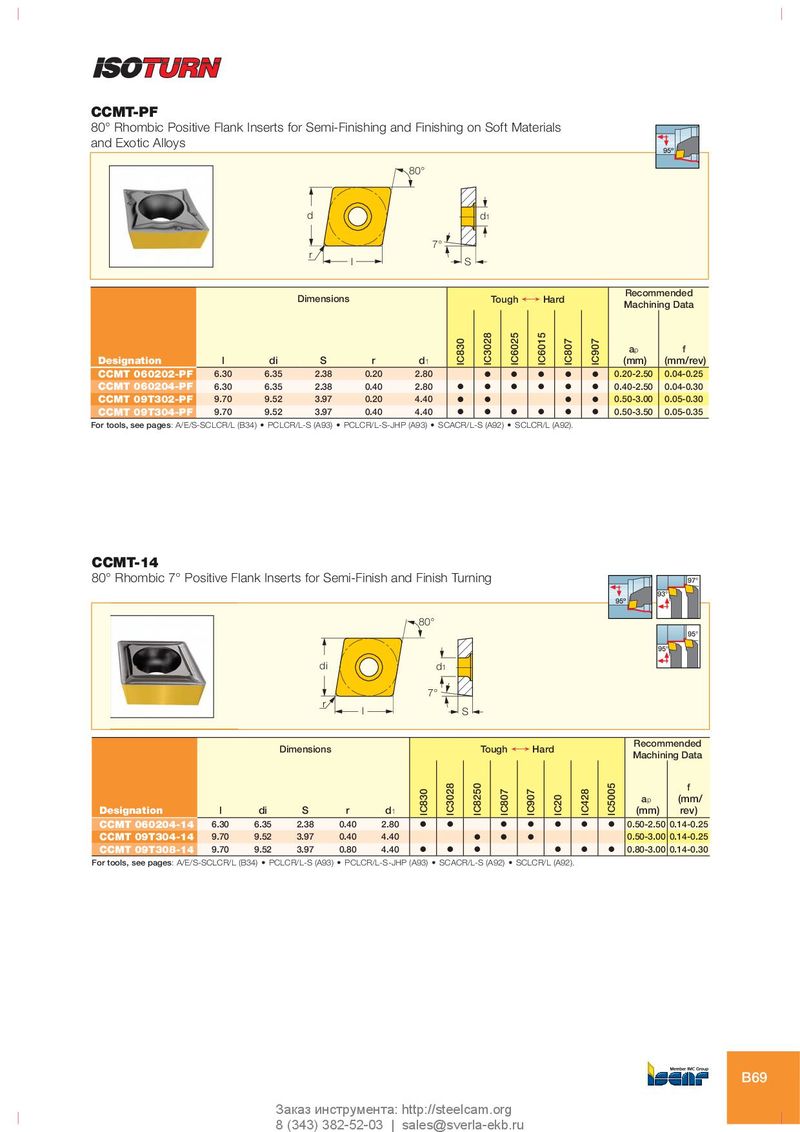

CCMT-PF
80° Rhombic Positive Flank Inserts for Semi-Finishing and Finishing on Soft Materials
and Exotic Alloys 95º

80°

d d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC3028
IC6025
IC6015
IC830


IC807
IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
CCMT 060202-PF 6.30 6.35 2.38 0.20 2.80 O O O O O 0.20-2.50 0.04-0.25
CCMT 060204-PF 6.30 6.35 2.38 0.40 2.80 O O O O O O 0.40-2.50 0.04-0.30
CCMT 09T302-PF 9.70 9.52 3.97 0.20 4.40 O O O O 0.50-3.00 0.05-0.30
CCMT 09T304-PF 9.70 9.52 3.97 0.40 4.40 O O O O O O 0.50-3.50 0.05-0.35
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).


CCMT-14
80° Rhombic 7° Positive Flank Inserts for Semi-Finish and Finish Turning 97°
93°
95º

80°
95°
95°
di d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data
IC3028
IC8250


IC5005


f
IC830


IC807
IC907


IC428
IC20


ap (mm/
Designation l di S r d1 (mm) rev)
CCMT 060204-14 6.30 6.35 2.38 0.40 2.80 O O O O O O O 0.50-2.50 0.14-0.25
CCMT 09T304-14 9.70 9.52 3.97 0.40 4.40 O O O 0.50-3.00 0.14-0.25
CCMT 09T308-14 9.70 9.52 3.97 0.80 4.40 O O O O O O 0.80-3.00 0.14-0.30
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).
