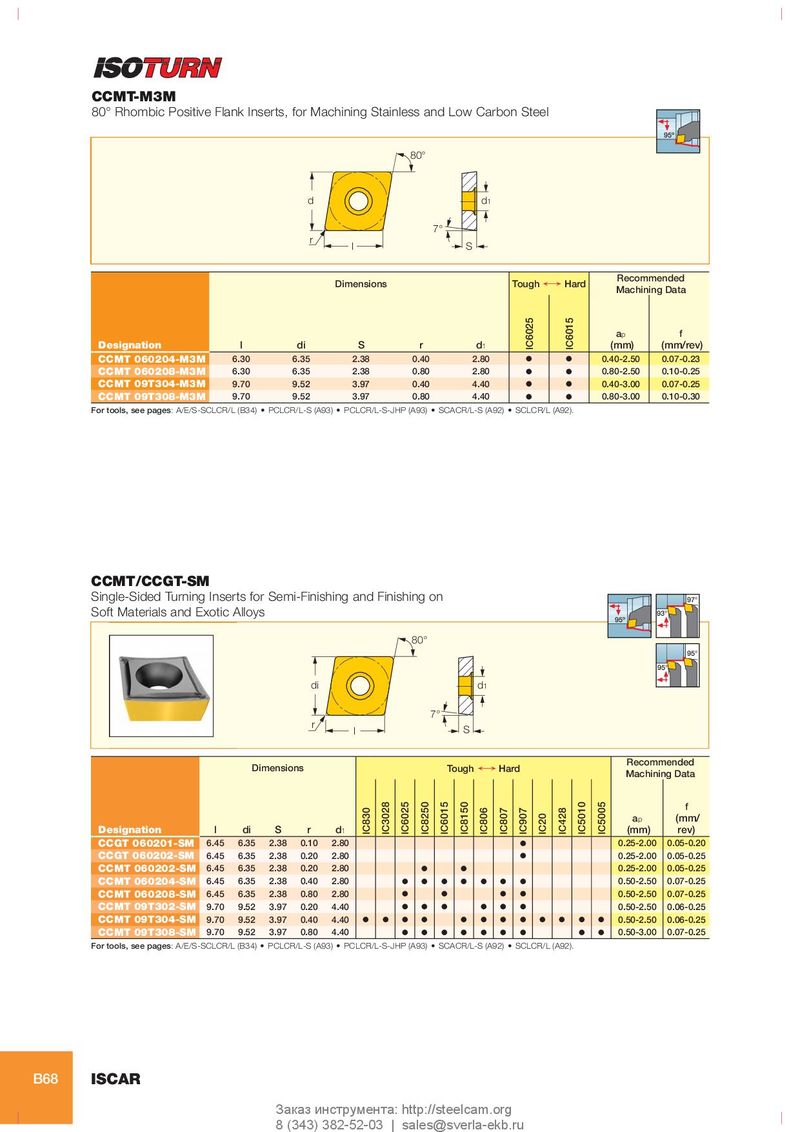

Каталог Iscar инструмент для внутренней обработки - страница 68

CCMT-M3M
80° Rhombic Positive Flank Inserts, for Machining Stainless and Low Carbon Steel
95º

80°

d d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC6025

IC6015
ap f
Designation l di S r d1 (mm) (mm/rev)
CCMT 060204-M3M 6.30 6.35 2.38 0.40 2.80 O O 0.40-2.50 0.07-0.23
CCMT 060208-M3M 6.30 6.35 2.38 0.80 2.80 O O 0.80-2.50 0.10-0.25
CCMT 09T304-M3M 9.70 9.52 3.97 0.40 4.40 O O 0.40-3.00 0.07-0.25
CCMT 09T308-M3M 9.70 9.52 3.97 0.80 4.40 O O 0.80-3.00 0.10-0.30
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).


CCMT/CCGT-SM
Single-Sided Turning Inserts for Semi-Finishing and Finishing on 97°
Soft Materials and Exotic Alloys 95º
93°

80°
95°
95°
di d1
7°
r
l S

Recommended
Dimensions Tough ¥ Hard
Machining Data
IC3028
IC6025
IC8250
IC6015
IC8150


IC5010
IC5005


f
IC830


IC806
IC807
IC907

IC428
IC20


ap (mm/
Designation l di S r d1 (mm) rev)
CCGT 060201-SM 6.45 6.35 2.38 0.10 2.80 O 0.25-2.00 0.05-0.20
CCGT 060202-SM 6.45 6.35 2.38 0.20 2.80 O 0.25-2.00 0.05-0.25
CCMT 060202-SM 6.45 6.35 2.38 0.20 2.80 O O 0.25-2.00 0.05-0.25
CCMT 060204-SM 6.45 6.35 2.38 0.40 2.80 O O O O O O O 0.50-2.50 0.07-0.25
CCMT 060208-SM 6.45 6.35 2.38 0.80 2.80 O O O O 0.50-2.50 0.07-0.25
CCMT 09T302-SM 9.70 9.52 3.97 0.20 4.40 O O O O O O 0.50-2.50 0.06-0.25
CCMT 09T304-SM 9.70 9.52 3.97 0.40 4.40 O O O O O O O O O O O O 0.50-2.50 0.06-0.25
CCMT 09T308-SM 9.70 9.52 3.97 0.80 4.40 O O O O O O O O O 0.50-3.00 0.07-0.25
For tools, see pages: A/E/S-SCLCR/L (B34) • PCLCR/L-S (A93) • PCLCR/L-S-JHP (A93) • SCACR/L-S (A92) • SCLCR/L (A92).


B68 ISCAR
